Home >> Buick >> 1989 >> Skyhawk L4-121 2.0L VIN 1 TBI >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Engine Grounds >> W-A/C

W-A/C

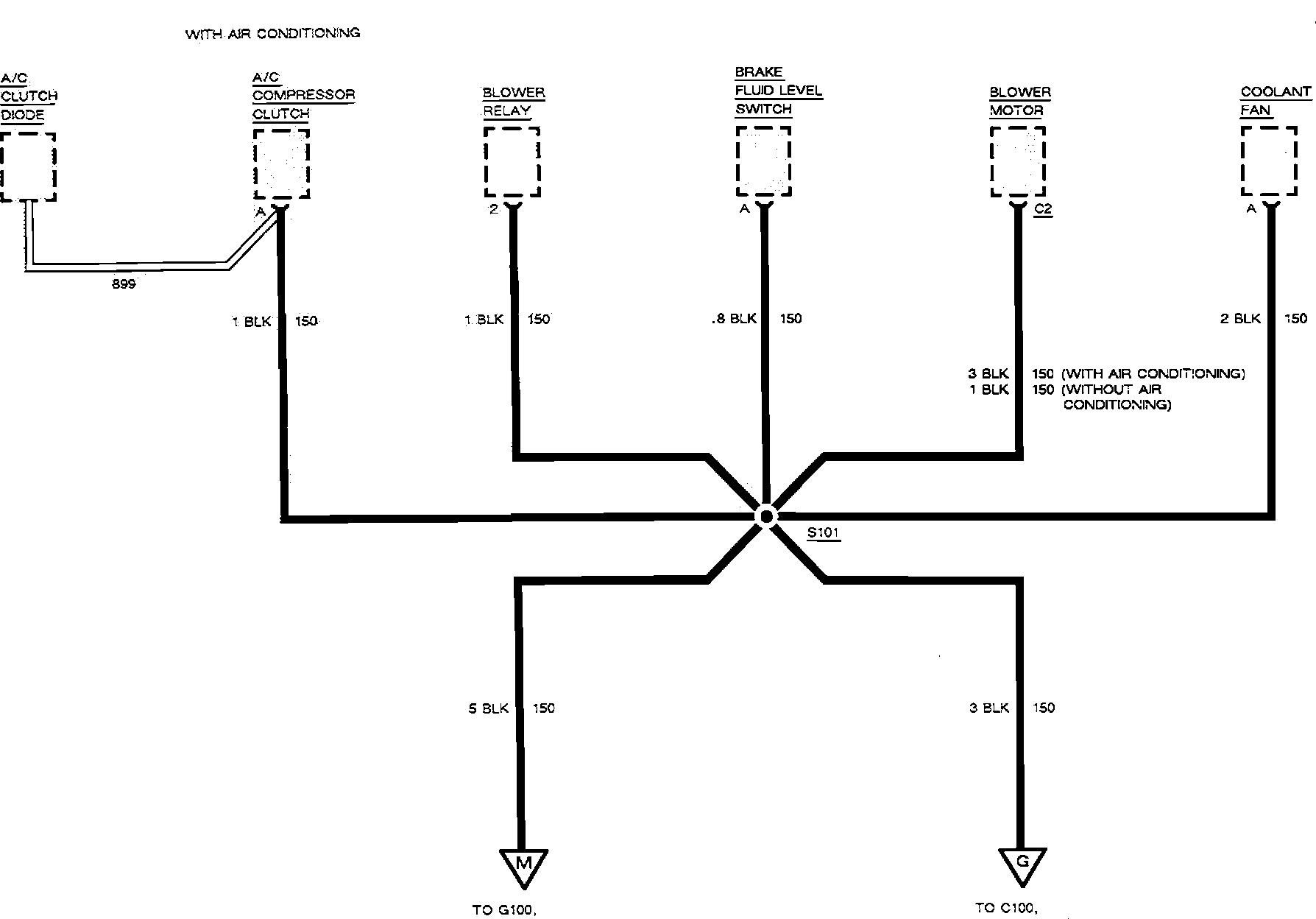

Ground Distribution (G100, G101, G115 & G200 Engine Grounds) W-A/C:
