Home
>>
Buick
>>
1989
>>
Skyhawk L4-121 2.0L VIN 1 TBI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Engine Grounds
>>
W/Auto Trans
W/Auto Trans

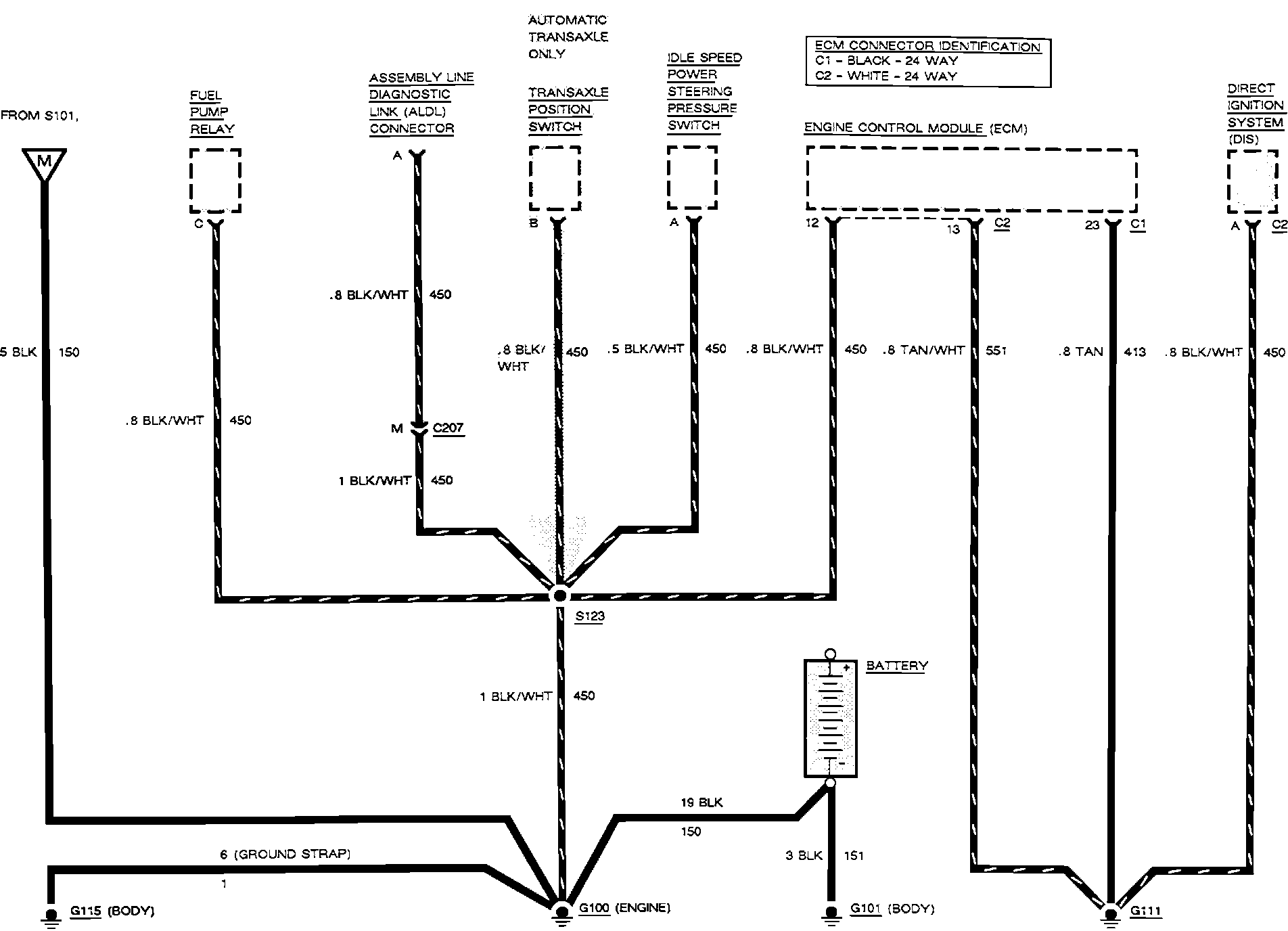

Ground Distribution (G100, G101, G111, G115 & G200 Engine Grounds) W/Auto. Trans:
