Home >> Buick >> 1989 >> Skyhawk L4-121 2.0L VIN 1 TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Circuit Breaker >> Windows

Windows

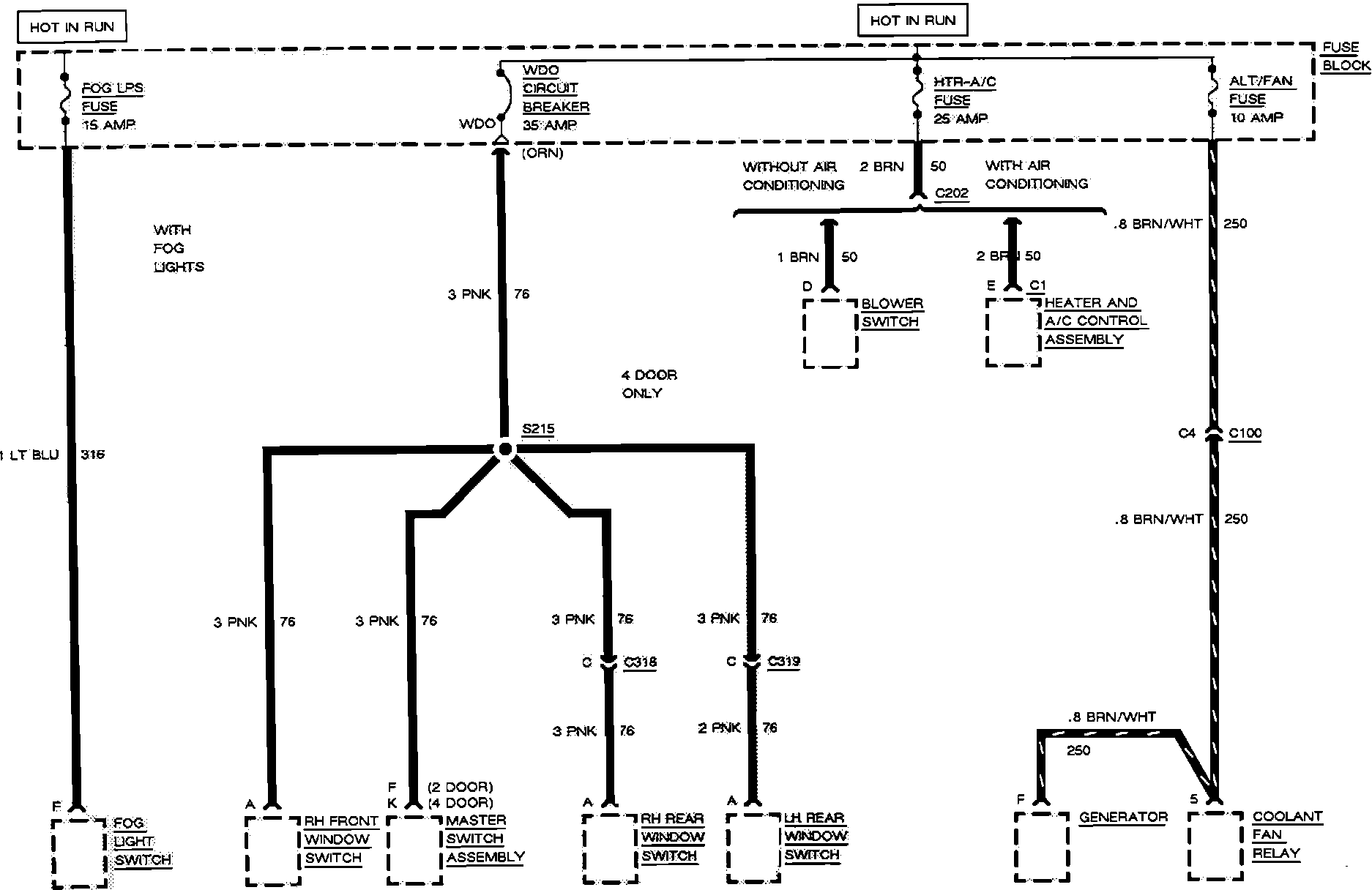

Fuse Block Details (ALT/Fan Fuse, Fog LPS Fuse, HTR-A/C Fuse & WDO Circuit Breaker):
