Buick
>>
1989
>>
Regal V6-191 3.1L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G305
G305

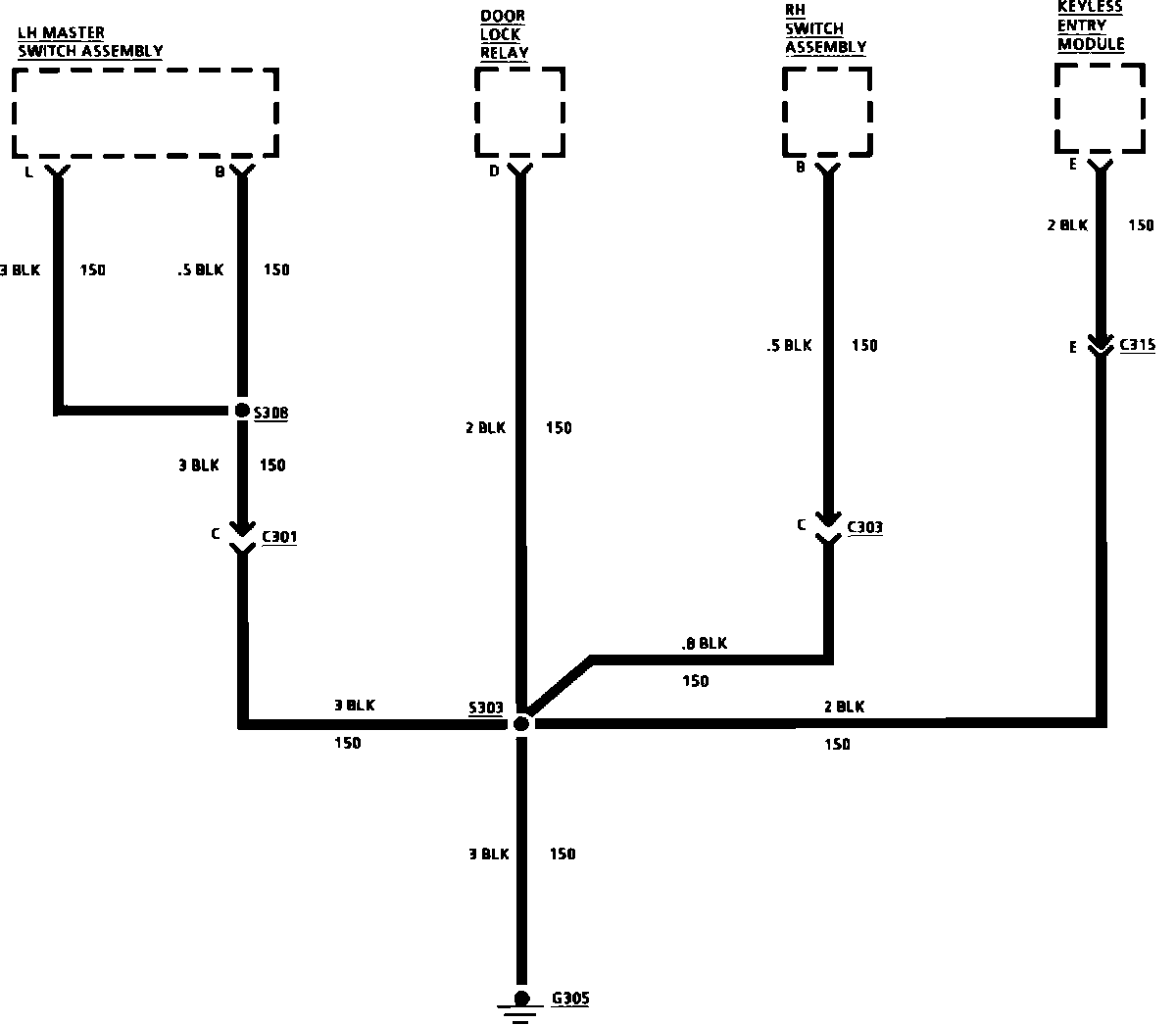

Ground Distribution G305:
