Home >> Buick >> 1989 >> Regal V6-191 3.1L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Fuse Block Diagrams >> Right Side Electrical Center >> Part 1 of 3

Part 1 of 3

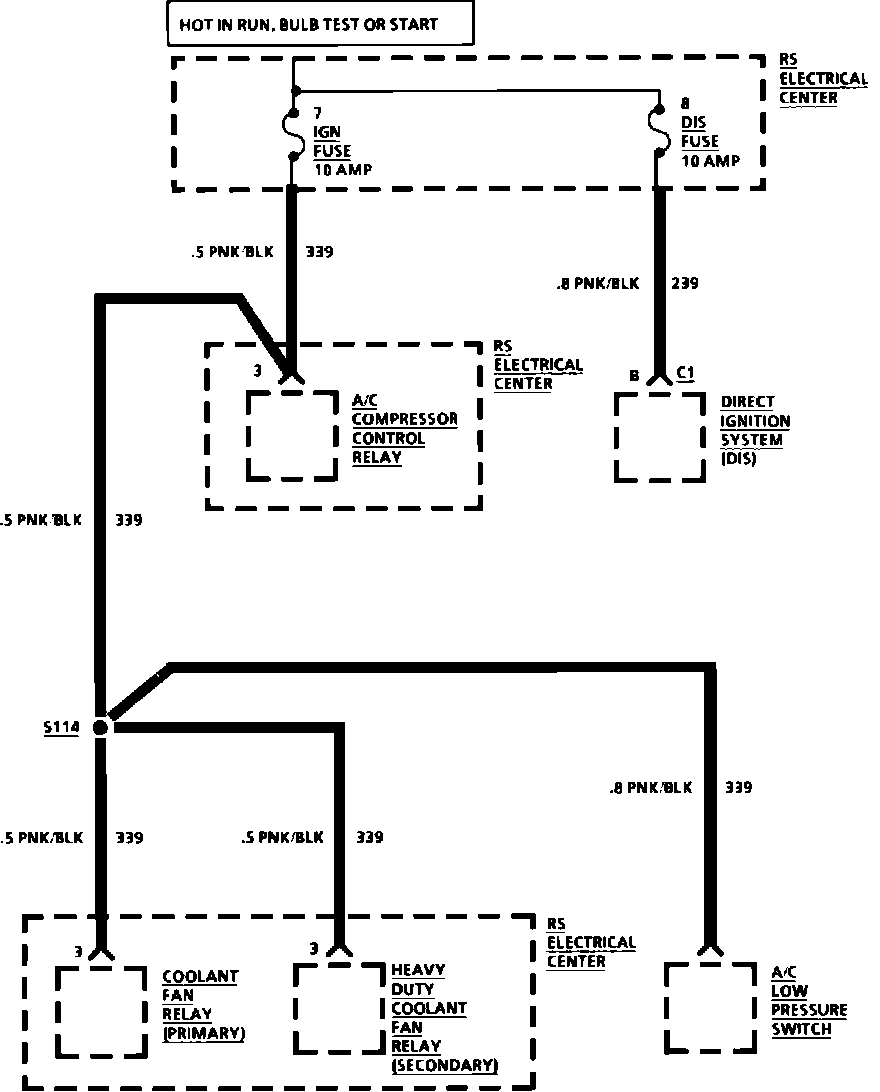

Fuse Block Details RS Electrical Center Part 1 Of 3:
