Home >> Buick >> 1989 >> Regal V6-191 3.1L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Heater Air Delivery and Temp. Control >> Part 1 of 2

Part 1 of 2

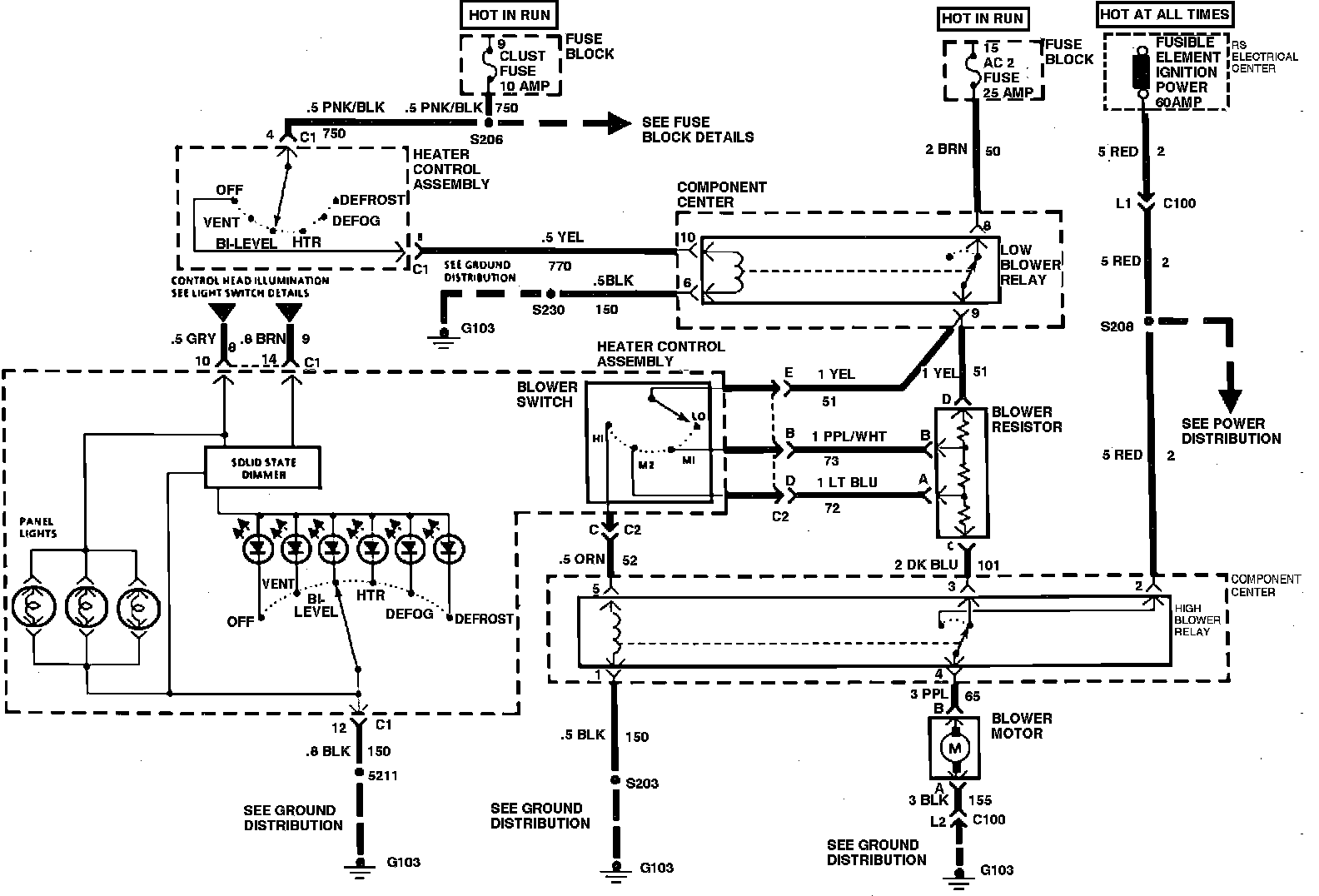

Heater Blower Controls Wiring Circuit:
