Regal V6-191 3.1L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Blower Controls
Blower Controls

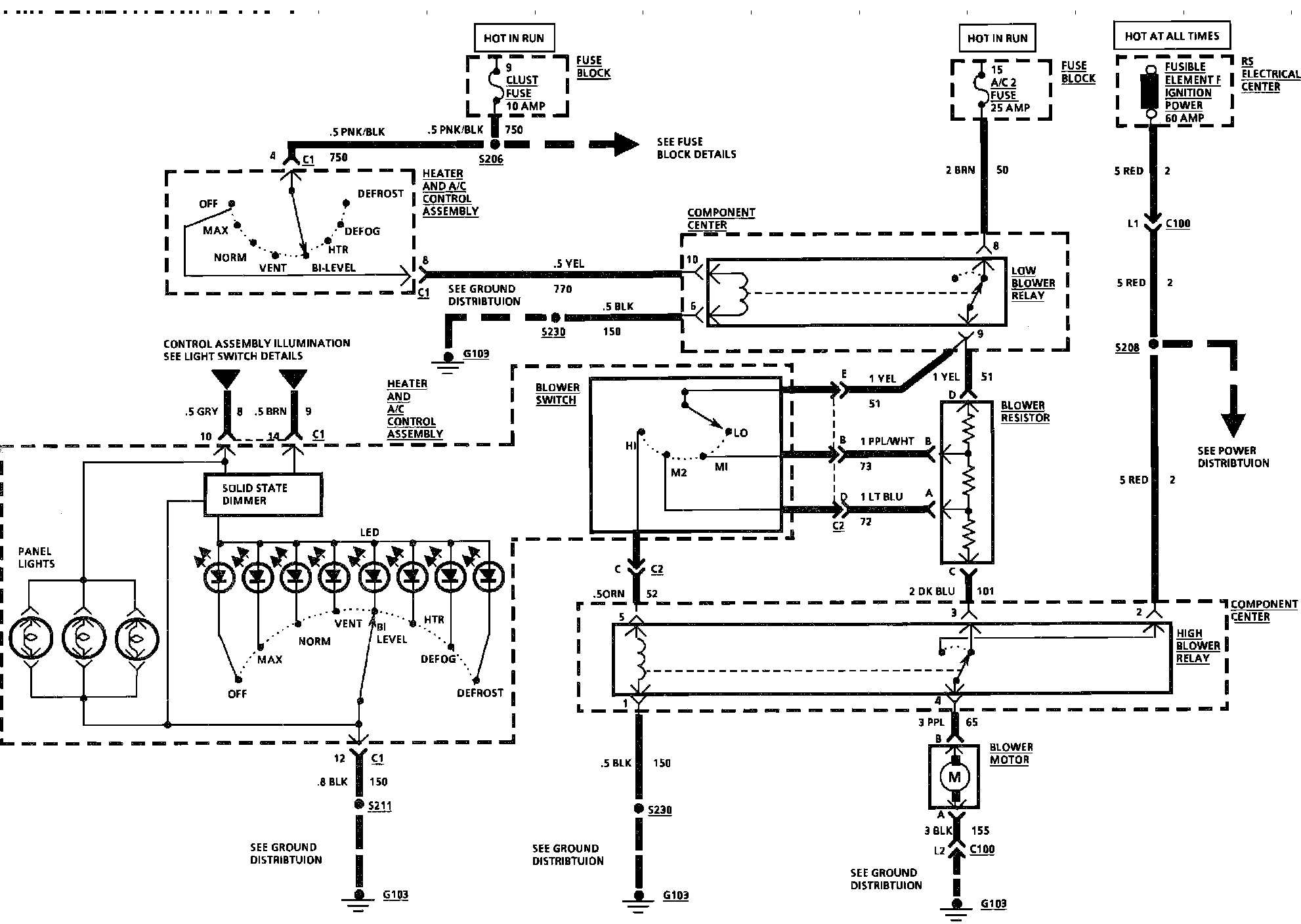

A/C Conditioning System Wiring Circuit (Blower Circuits):
