Home
>>
Buick
>>
1989
>>
Regal V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Fuses 8, 11
Fuses 8, 11

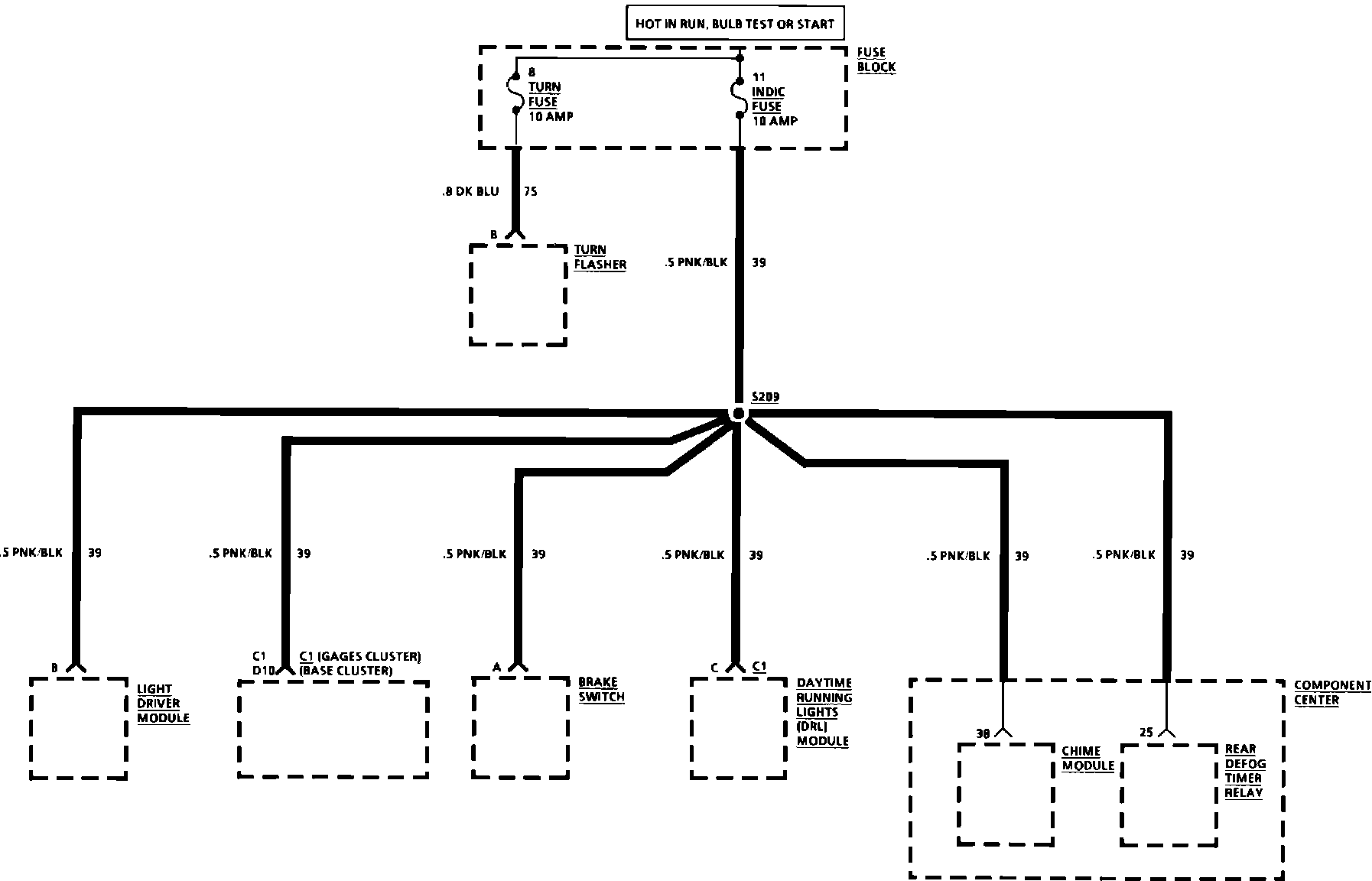

Fuse Block Details Fuses 8 & 11:
