I009

Code I009 will set if the Ignition is in RUN and serial data link speed is 5 MPH or greater than the vehicle speed input for 5 seconds and the Vehicle Speed Input at the Electronic Instrument Cluster is LO.

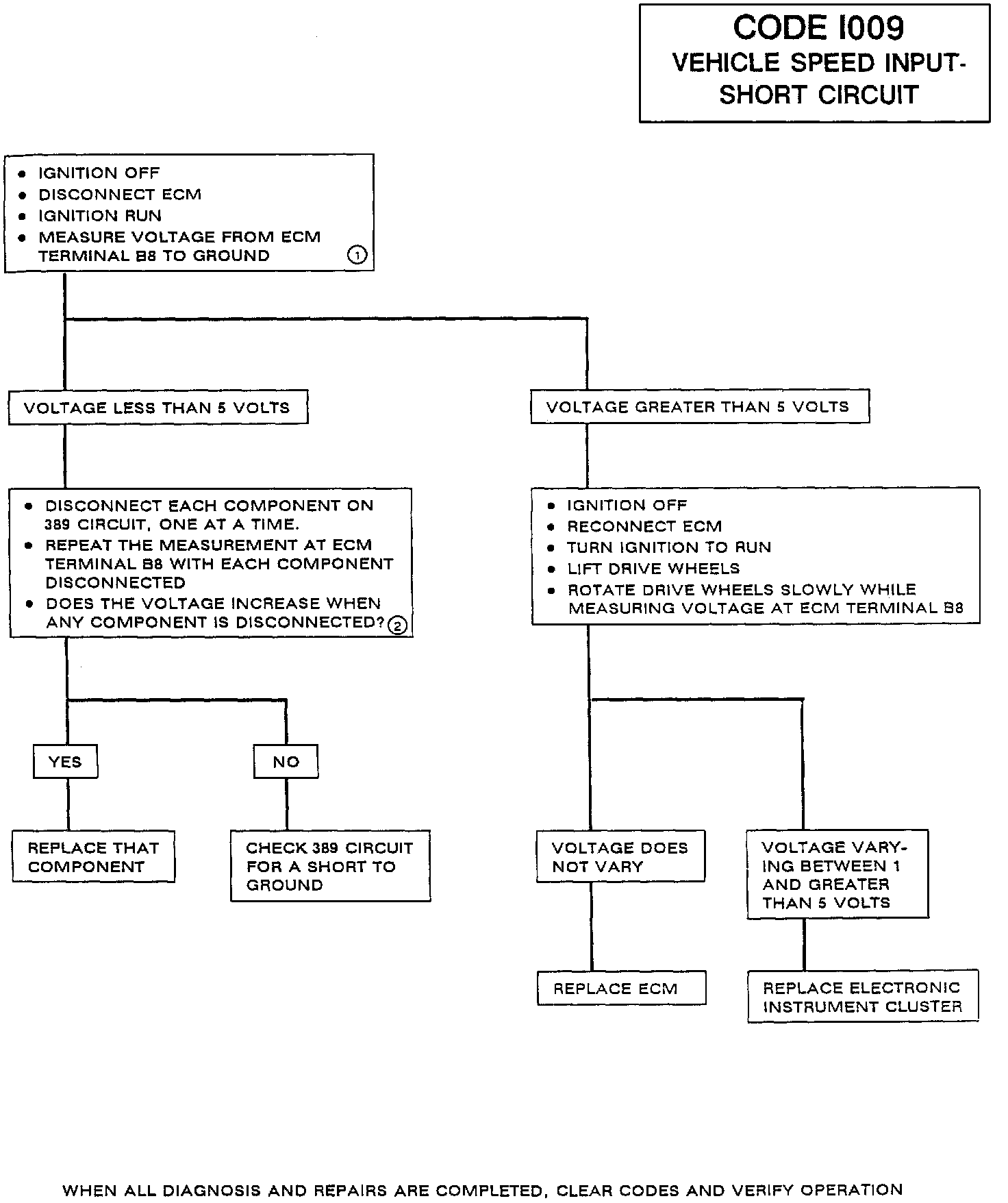

TEST EXPLANATIONS

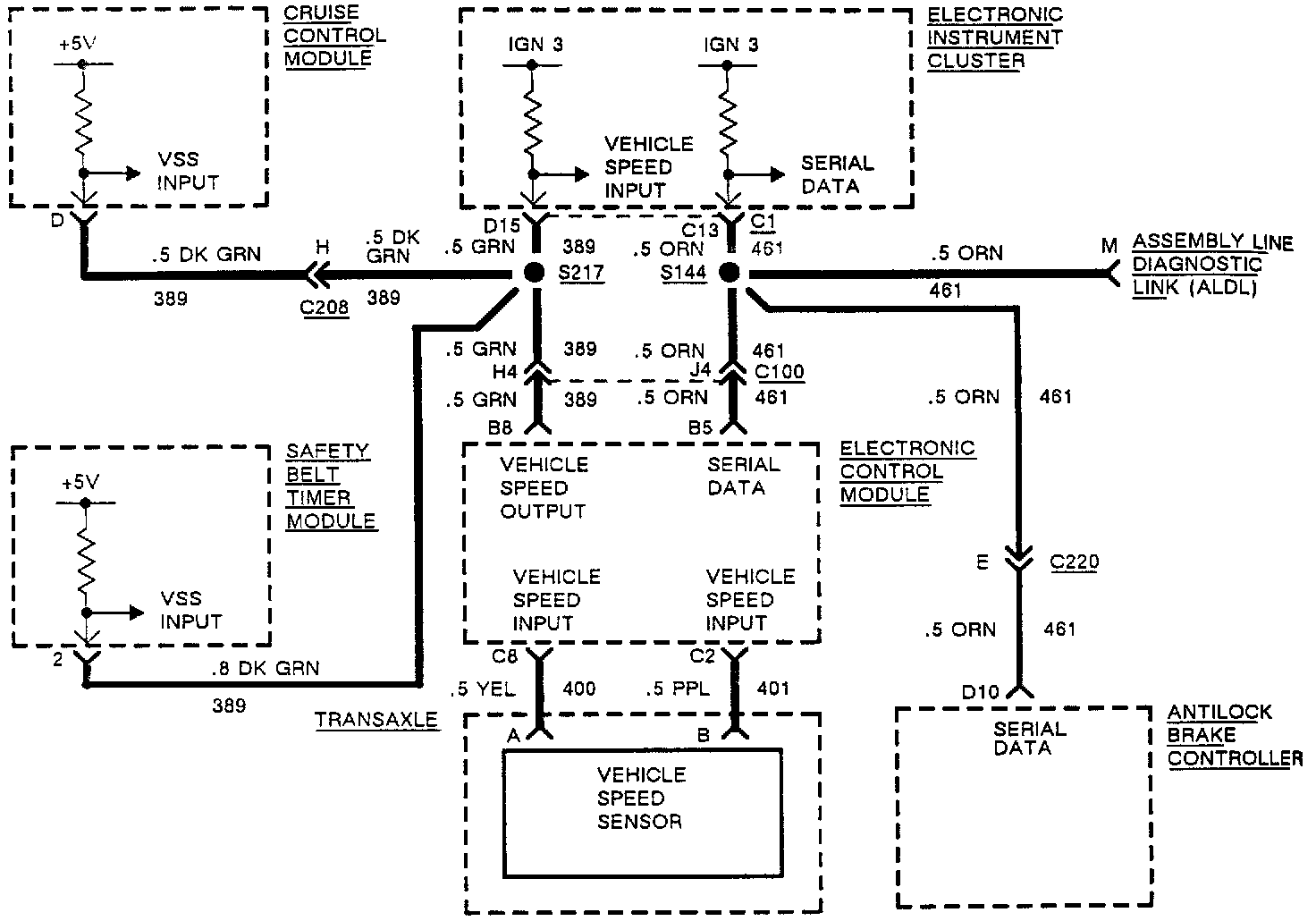

1. This step checks if a short to ground exists in circuit 389 or the Electronic Instrument Cluster is at fault.

2. This step determines if the short exists in the Cruise Control Module.

3. This step determines if the short exists in the Electronic Control Module or in CKT (389).
