Oil Pan: Service and Repair

REMOVE OR DISCONNECT
1. Negative battery cable
2. Serpentine belt cover and belt
3. Belt tensioner
4. Support engine with J 28467-A using an extra support leg.
5. Raise vehicle.
6. Drain engine oil.
7. Right tire and wheel assembly
8. Right splash shield
9. Steering gear pinch bolt
10. Transaxle mount retaining nuts
11. Engine to frame mount retaining nuts
12. Front engine horse collar bracket from block
13. Outboard flywheel/starter plastic shield
14. Inboard flywheel metal shield
15. Starter and hang from body
16. Place jackstand under frame front center crossmember.
17. Loosen rear frame bolts - DO NOT REMOVE.
18. Front frame bolts and lower front of frame

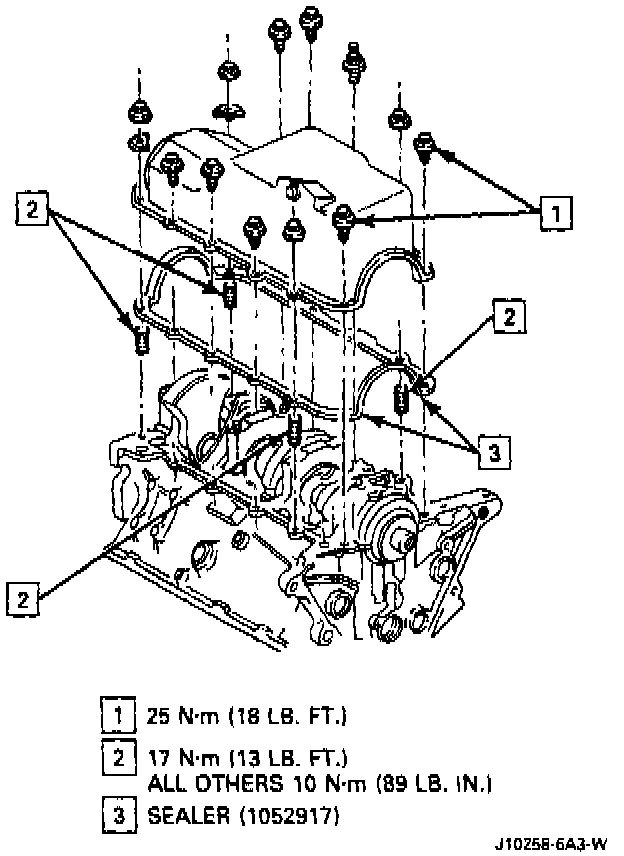

19. Oil pan retaining bolts
20. Oil pan retaining nuts
21. Oil pan

CLEAN
^ Oil pan flanges
^ Oil pan rail
^ Timing Cover
^ Rear main bearing cap
^ Threaded holes

INSTALL OR CONNECT
1. New gasket
2. Oil pan
3. Oil pan retaining nuts
4. Oil pan retaining bolts
5. New frame to body bolts
6. Remove jackstand.
7. Starter
8. Inboard flywheel metal shield
9. Outboard flywheel/starter plastic shield
10. Front engine horse collar bracket from block
11. Engine to frame mount retaining nuts
12. Transaxle mount retaining nuts
13. Steering gear pinch bolt
14. Right splash shield
15. Right tire and wheel assembly
16. Lower vehicle.
17. Remove engine support fixture.
18. Belt tensioner
19. Serpentine belt and belt cover
20. Fill crankcase with oil.
21. Negative battery cable

INSPECT
^ Proper fluid levels
^ Leaks
^ Completion of repair
