Buick
>>
1989
>>
Reatta V6-231 3.8L VIN C SFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Air Delivery and Temperature Controls
Air Delivery and Temperature Controls

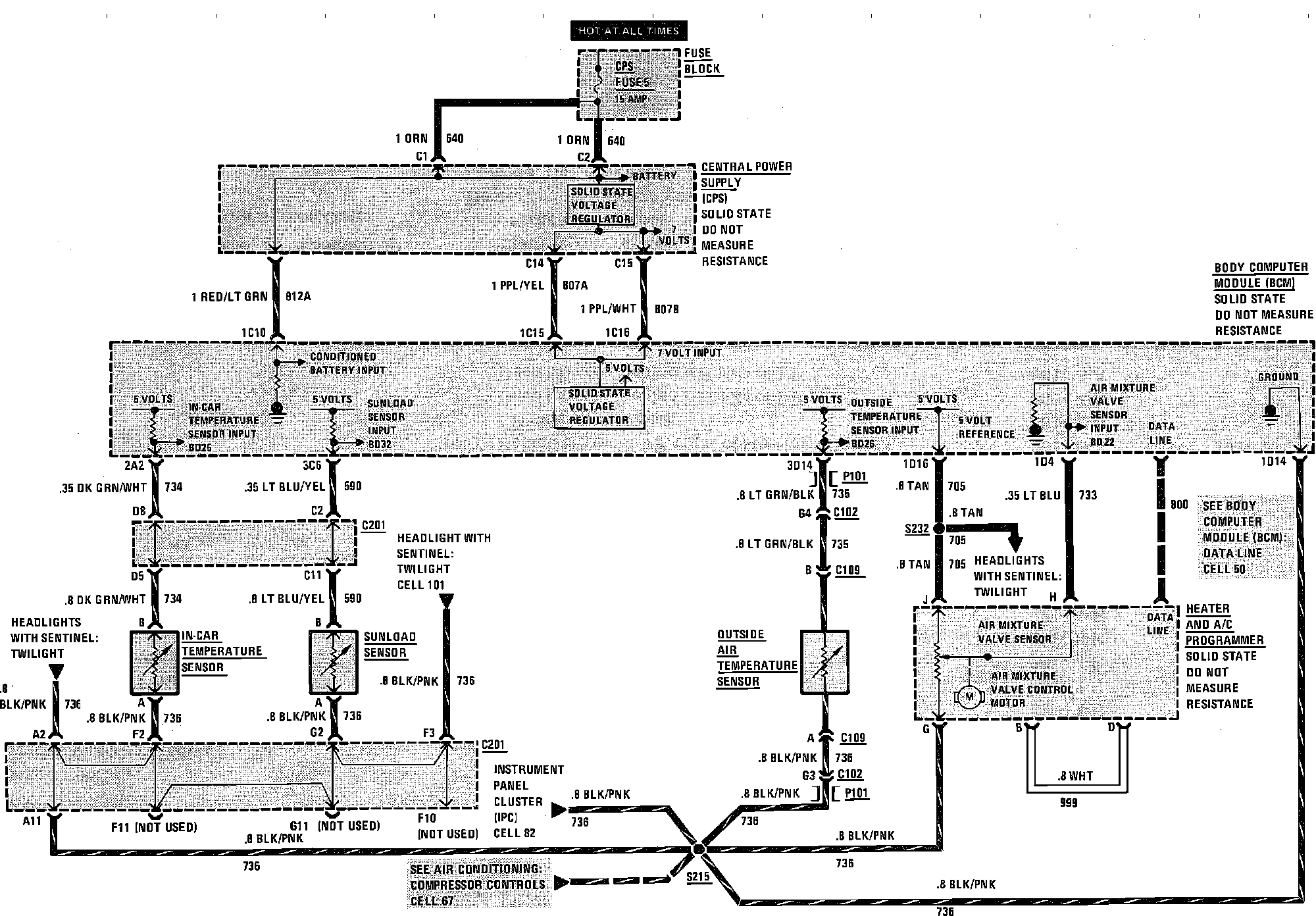

A/C System Vacuum & Wiring Circuit (Temp. Control):
