Instrument Panel, Gauges and Warning Indicators
Instrument Panel, Gauges and Warning Indicators

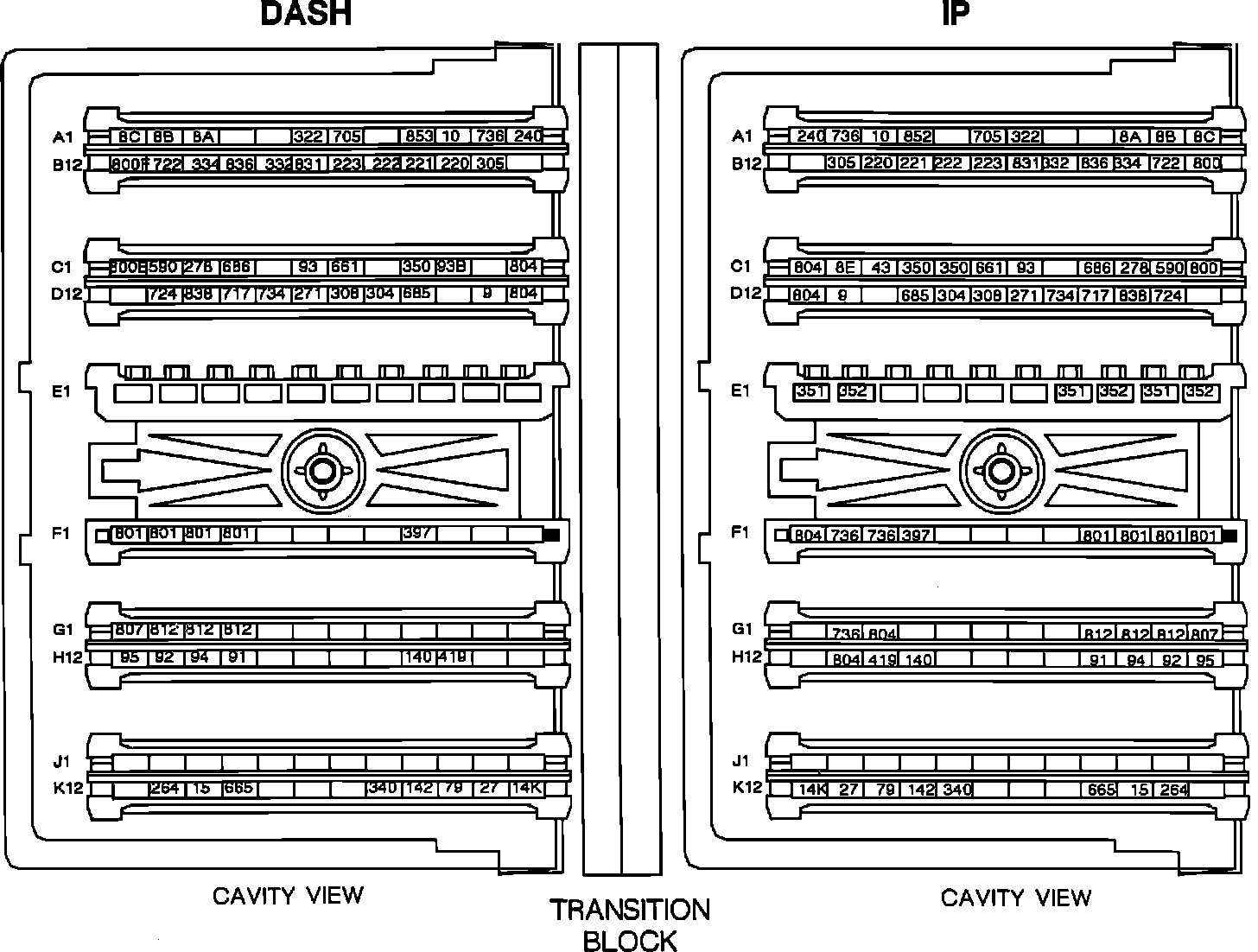

Transition Block:

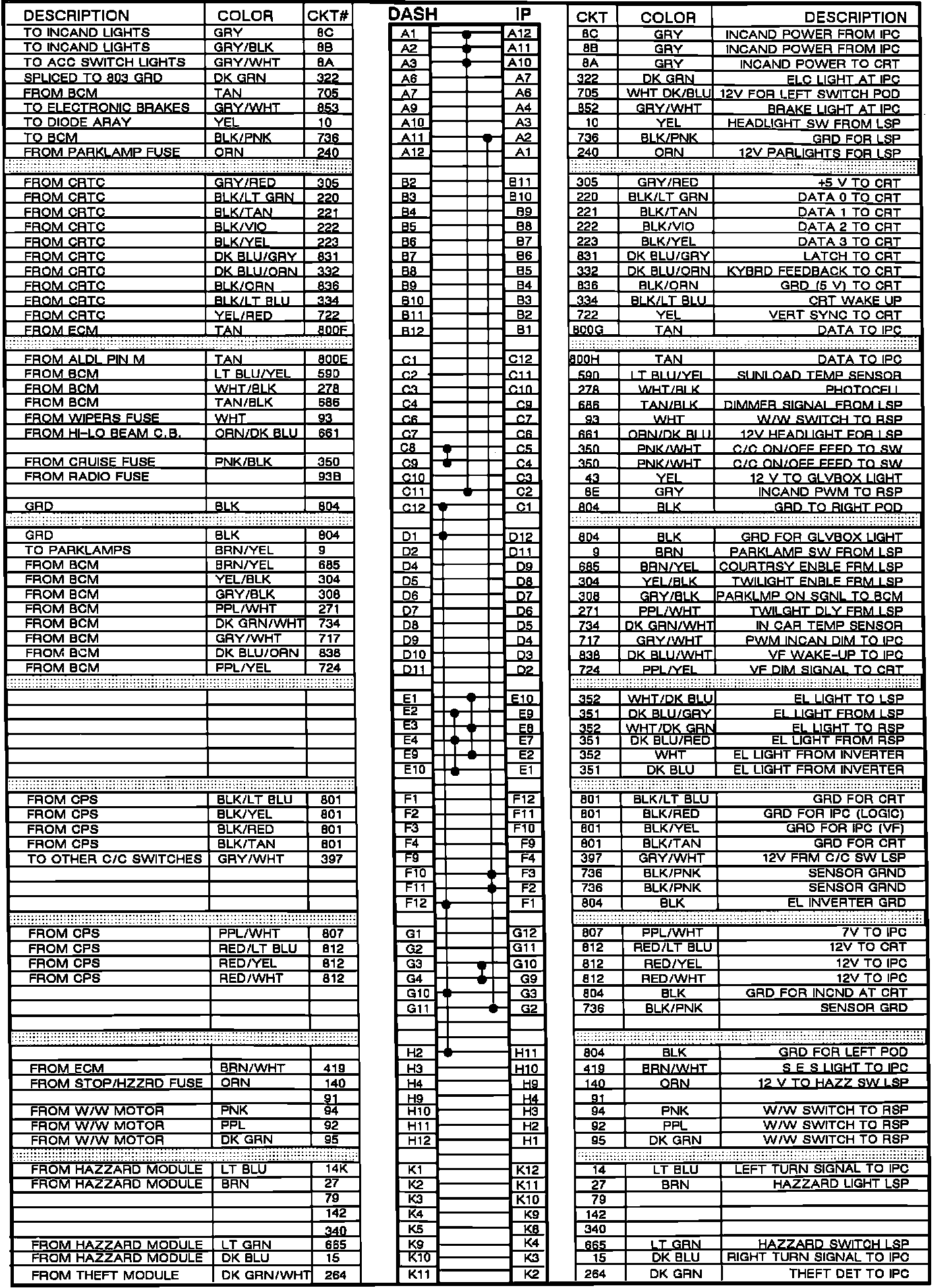

Transition Schematic:
