Home >> Buick >> 1989 >> Reatta V6-231 3.8L VIN C SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Brake Pedal Assy >> Testing and Inspection

Brake Pedal Assy: Testing and Inspection

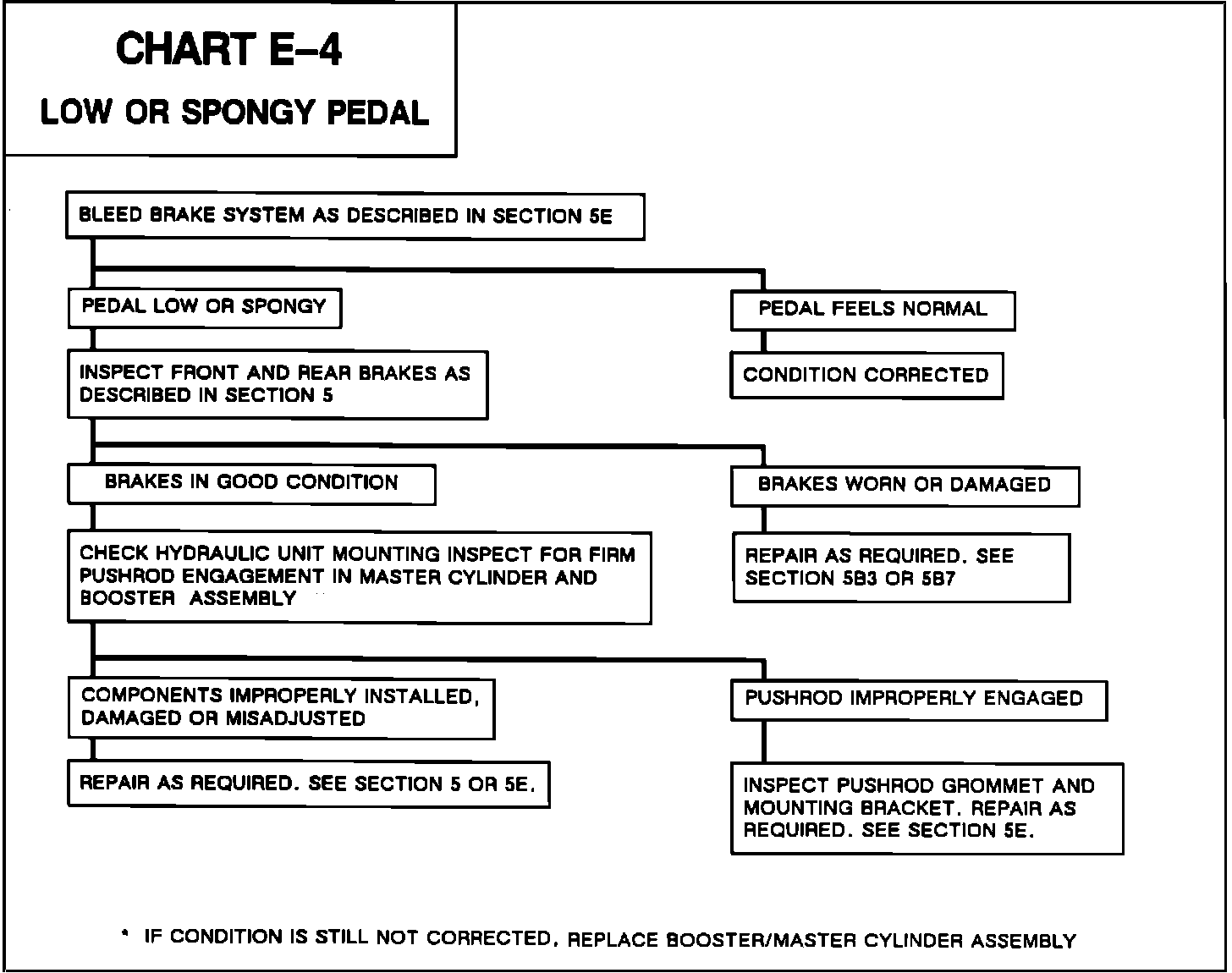

Fig. 50 Chart E-4, Low Or Spongy Pedal:
