Buick
>>
1989
>>
LeSabre Estate Wagon V8-307 5.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
ECM/DEC or ECM/Ignition
ECM/DEC or ECM/Ignition

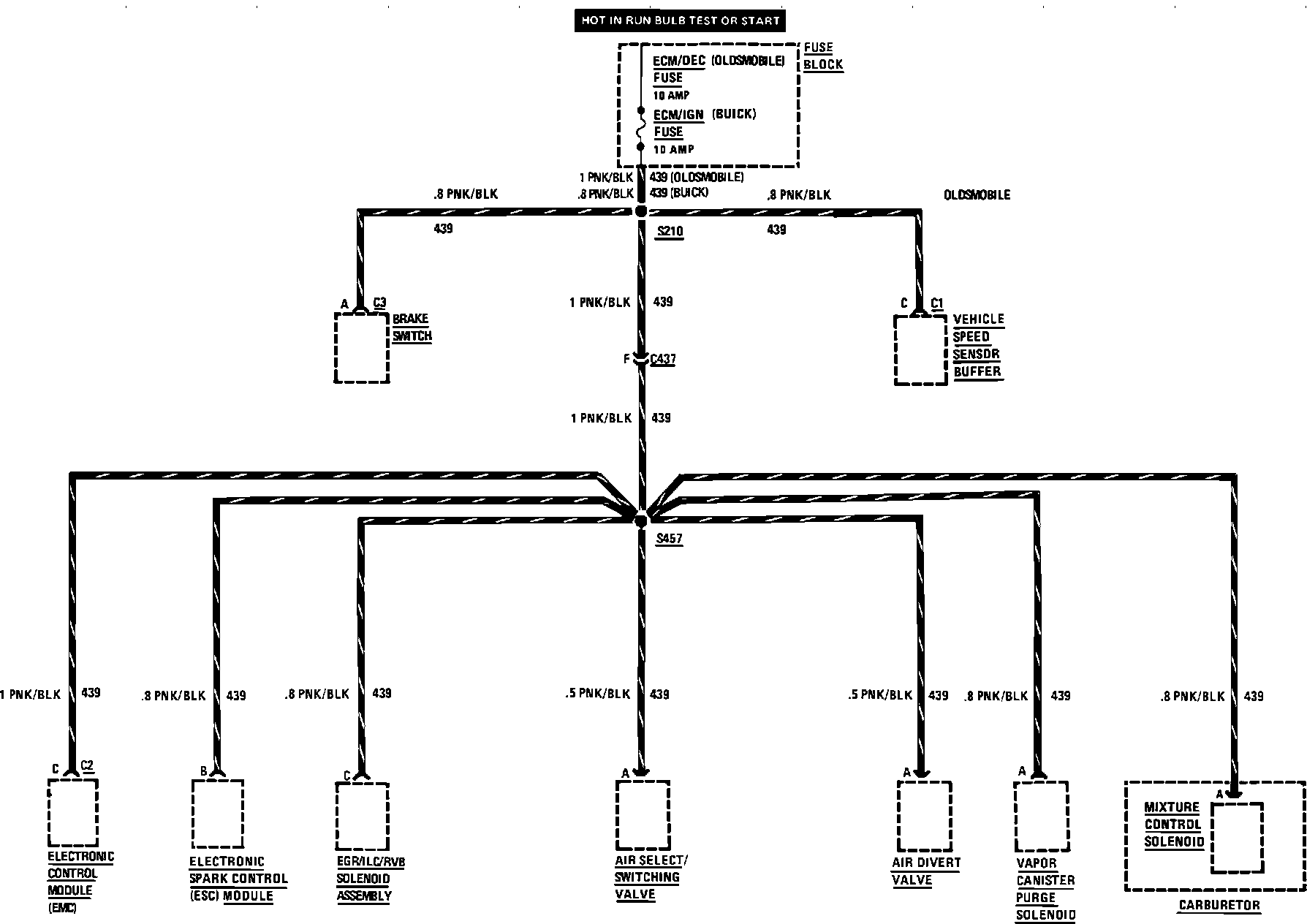

Fuse Block Details (ECM/DEC Or ECM/Ignition):
