A/C Pressure Sensor/Switch - Cooling Fan: Locations

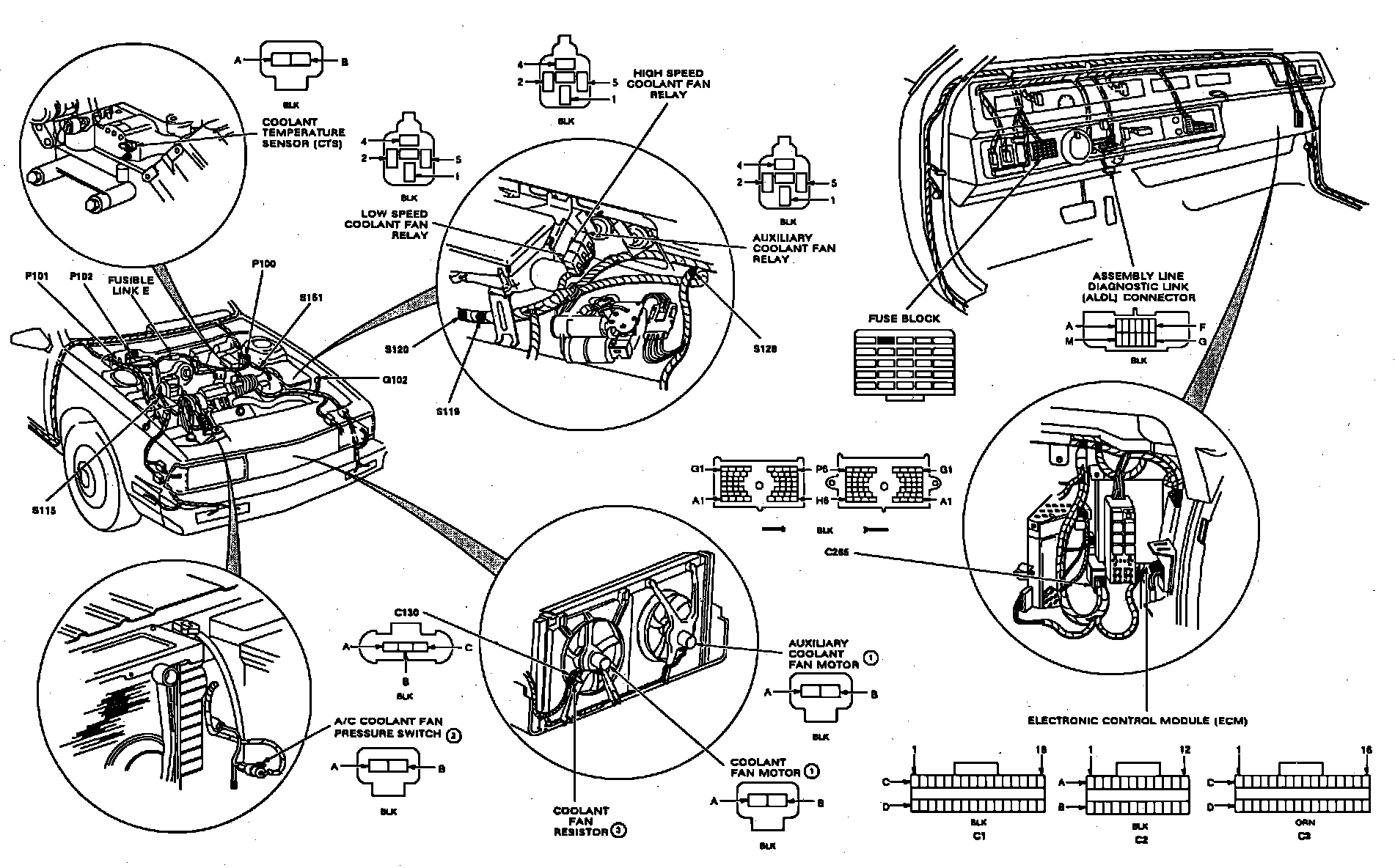

Coolant Fans Components Location.:




RH Front Of Engine Compartment, On A/C Line

Applicable to: 1989
