New Shift Speed and Oil Pressure Charts

Parts are expected to be available (for part numbers 8668566 and 8668567) on 11/21/88. Until then normal part orders will not be accepted by GMSPO. Only verifiable emergency VIP orders will be accepted. SPO will make every effort to obtain parts. All parts will be placed on 400 control to waive VIP surcharges. However, the part will be shipped premium transportation at dealer's expense. All other order types will be cancelled as incorrectly ordered while the 400 control is in place.

8662010 Plate, Backing Support Ring 1987-88 - All
8661141 Ring, Snap 1987-88 - All

Parts are currently available from GMSPO.

SERVICE MANUAL REFERENCE

This product change does not affect diagnosis for 1989 THM 440-T4 transaxles and is not shown in the 1989 THM 440-T4 Unit Repair Section of your Service Manual.

TRANSAXLE APPLICATIONS: SUBJECT:

1989 THM 440-T4 (ME9) New Shift Speed And Oil
Pressure Charts

TRANSAXLE MODELS: VEHICLE APPLICATIONS:

All THM 440-T4 A, C, H, E, W, Cars

FIGURE 12 - SPEED SHIFT CHART:

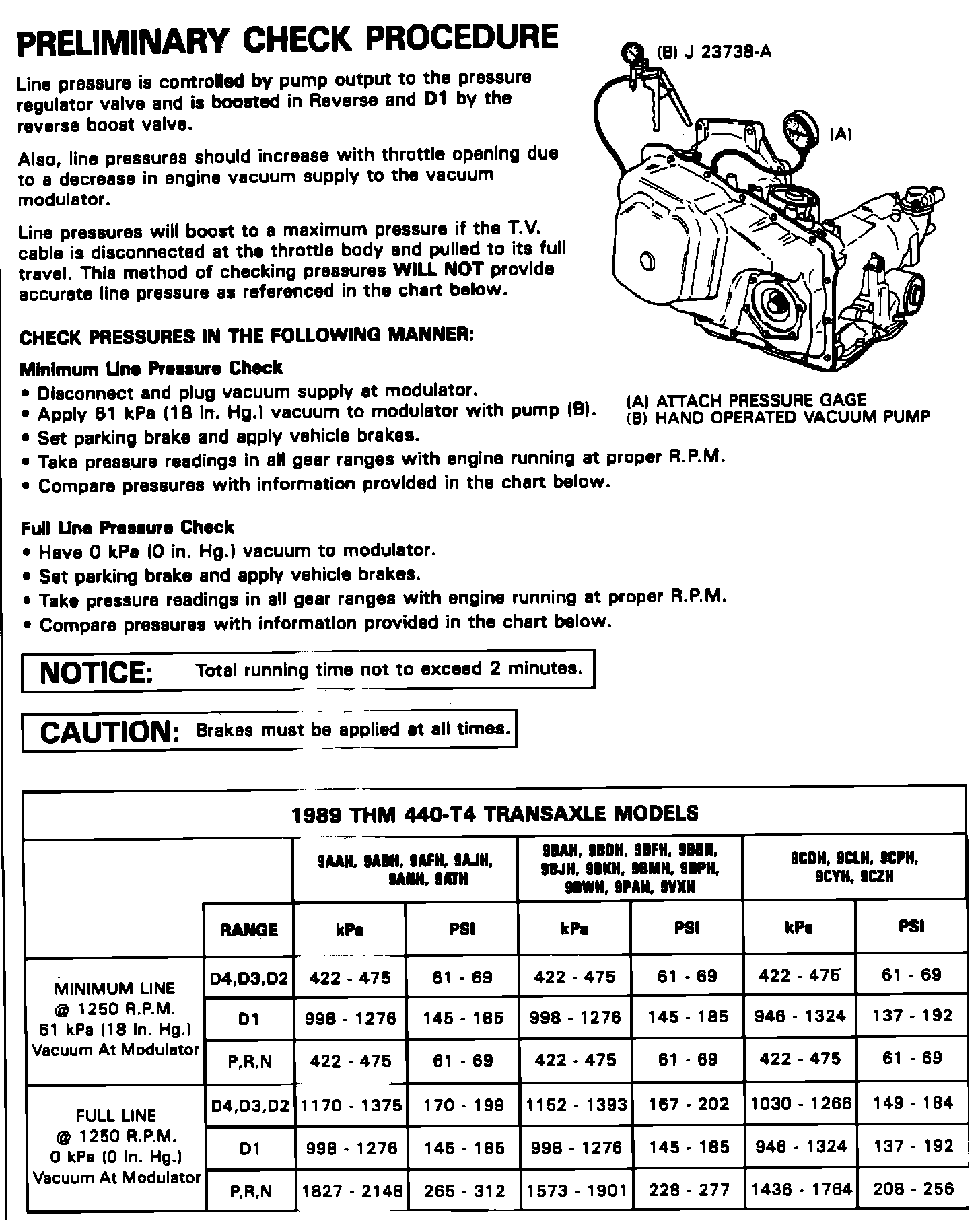

FIGURE 13 - PRELIMINARY CHECK PROCEDURE:

CHANGE TO ASSEMBLY COMPONENTS (Figures 12 & 13)

Shift speed and oil pressure charts for the 1989 model year have been changed for new engine calibrations and the addition of three 1989 THM 440-T4 transaxle models.

SERVICE ACTION

Reference the new shift speed and oil pressure charts when servicing a 1989 model.

SERVICE MANUAL REFERENCE

This product change information is shown in the THM 440-T4 Automatic Transaxle Unit Repair section of your 1989 Service Manual.
