Home
>>
Buick
>>
1989
>>
Century L4-151 2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G403
>>
Ex Station Wagon
Ex Station Wagon

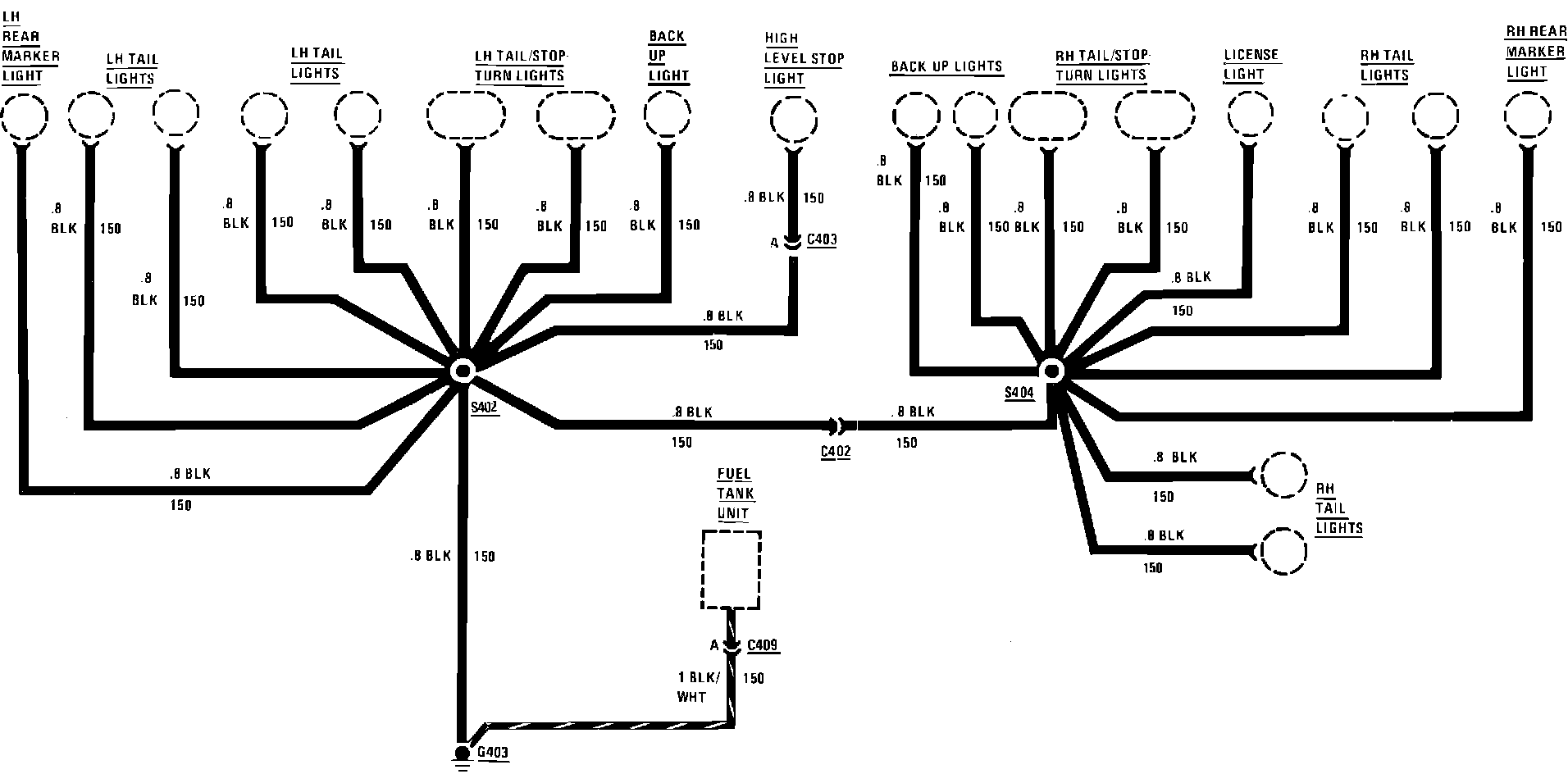

Ground Distribution (G403):
