Buick
>>
1988
>>
Skylark L4-138 2.3L DOHC VIN D MFI
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Instrument Panel
>>
Speedometer Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

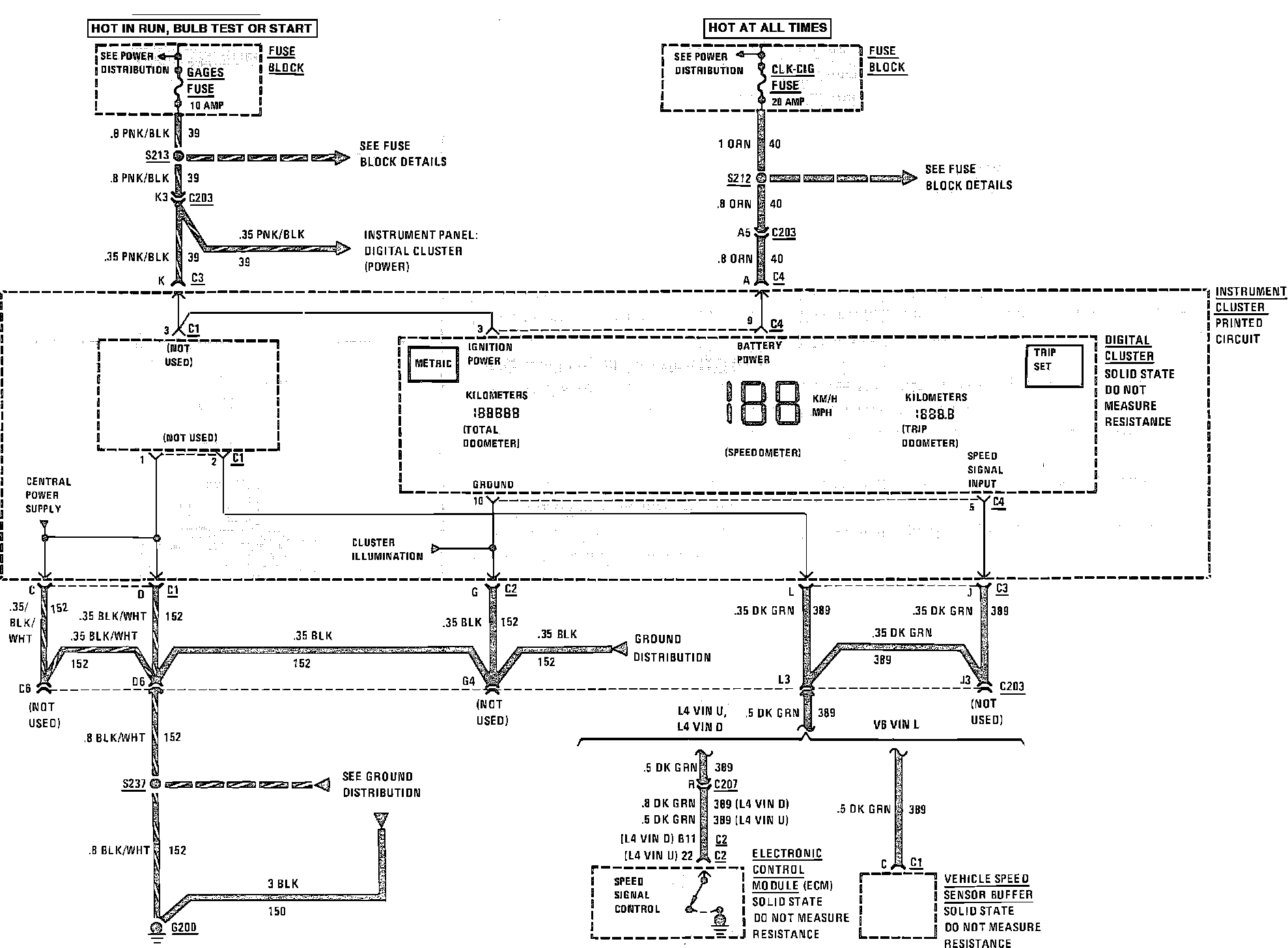

Digital Cluster - Speedometer & Odometer:
