Engine - Updated Alternator & Fuel Injector Loom Routing

88buick05

Bulletin: 88-8-11

Date: Mar. '88

Ref. No.: 88-096-8

Corp. Ref. No.: 878103
SUBJECT: QUAD-4 ENGINE HARNESS (ALTERNATOR/ FUEL INJECTOR BRANCH) ROUTING REVISION


MODELS AFFECTED: 1988 SKYLARKS WITH THE 2.3L QUAD-4 ENGINE (VIN CODE D)


Some Skylarks with the LD2 Quad-4 engine may experience one or more of the following conditions:

- A "Check Engine" Light
- An ECM Failure
- Rough Running Engine
- An Inoperative Fuel Pump
- An Inoperative Alternator
- An Inoperative A/C Compressor
- White Smoke from the Exhaust

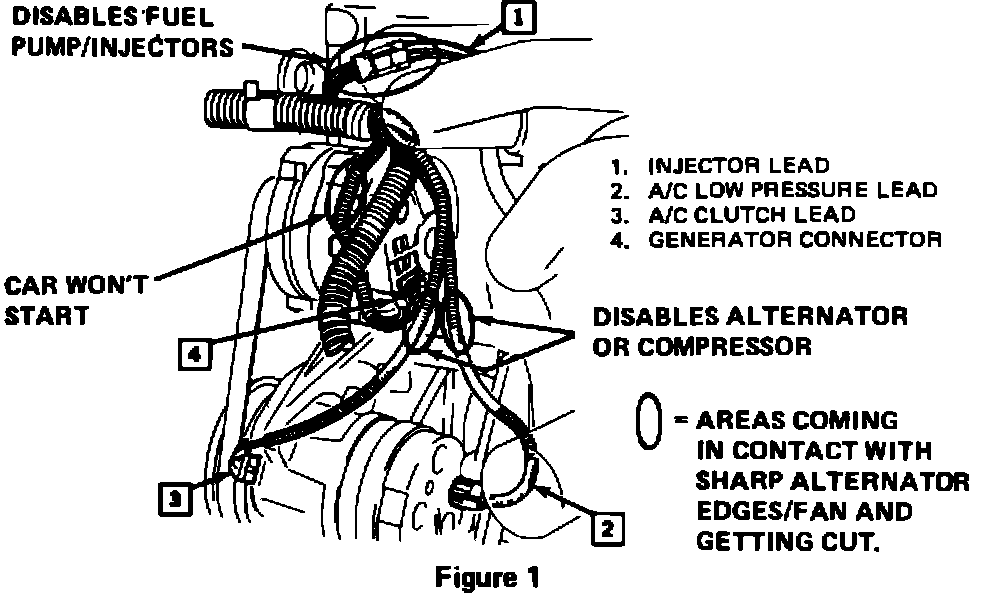

FIGURE 1:

Any of these conditions may be caused by a shorted engine wiring harness (alternator/fuel injecter branch) which has rubbed against the alternator and/or is contacting the cooling fins on the alternator pulley (See Figure 1).

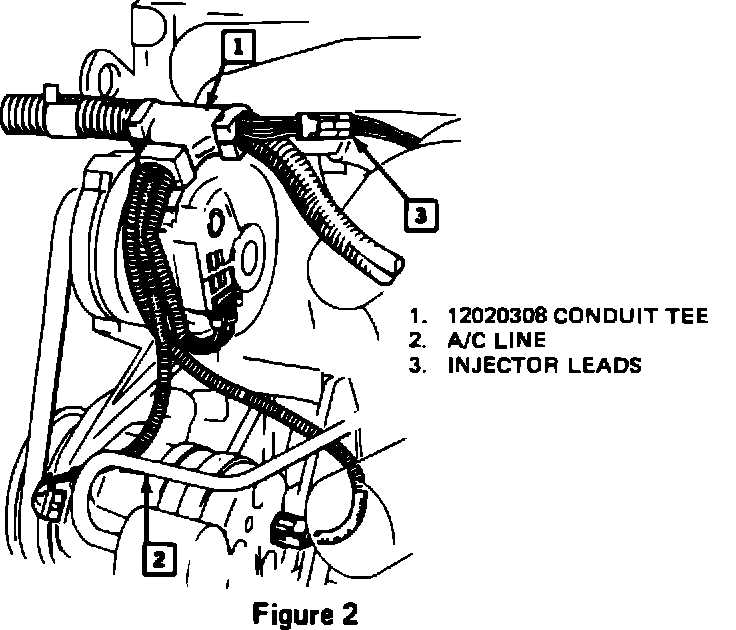

FIGURE 2:

To address any of these conditions, repair the harness and install a conduit Tee, Part Number 12020308, to hold the injecter leads on the inboard side as shown in Figure 2.
Cars built after VIN JM023210 had the conduit tee installed on the production line.

WARRANTY INFORMATION

Use applicable labor time.
