System Diagnosis - Integrated Direct Ignition (IDI) System - Quad IV

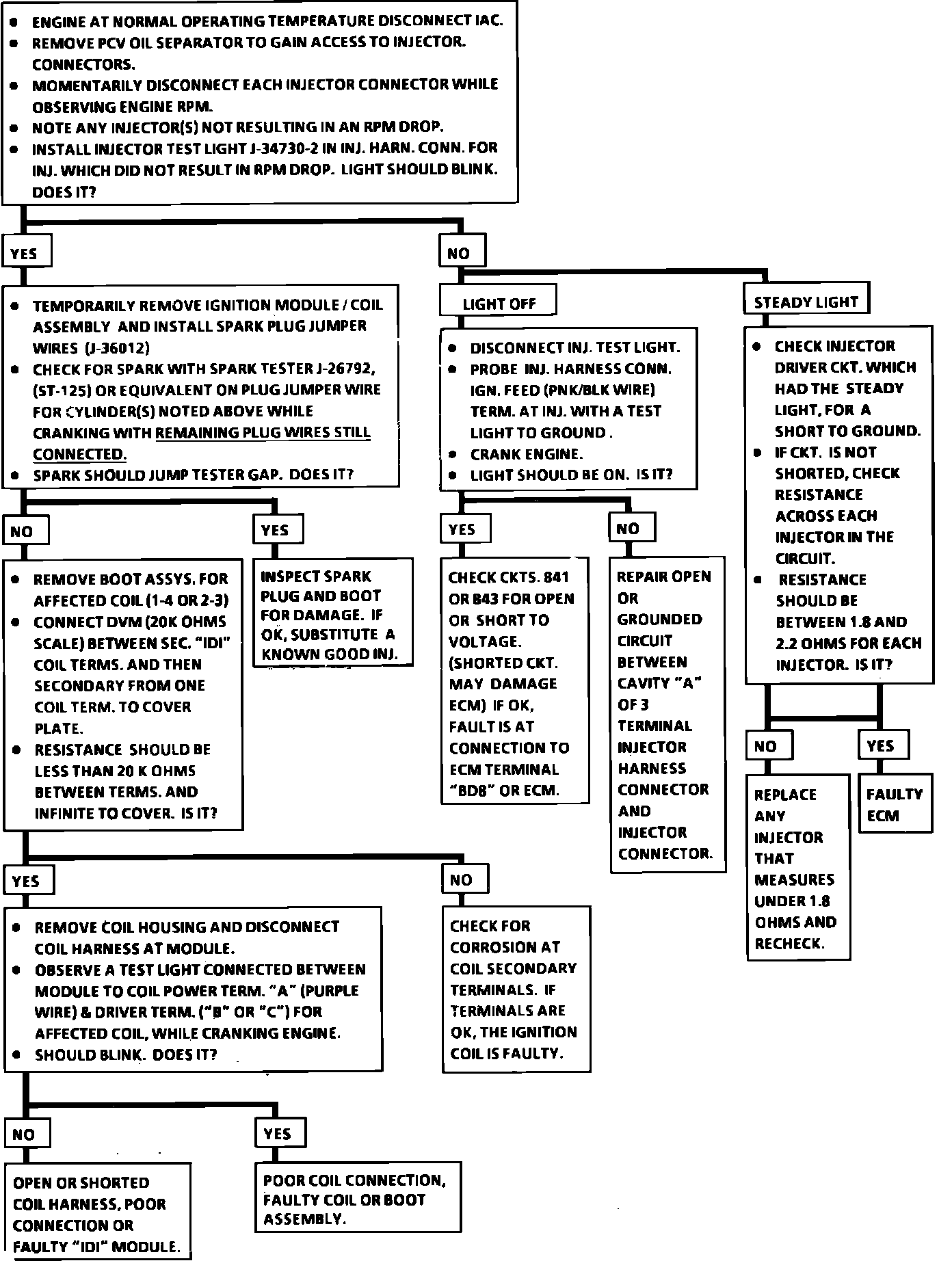

Fig. 2 IDI system diagnosis chart. 1988 Quad IV engine:

Refer to IDI ignition system diagnosis chart, Fig. 2 for diagnosis procedures.
