Home
>>
Buick
>>
1988
>>
Skylark L4-138 2.3L DOHC VIN D MFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor Clutch Relay
>>
Locations
>>
Compressor Control Relay
Compressor Control Relay

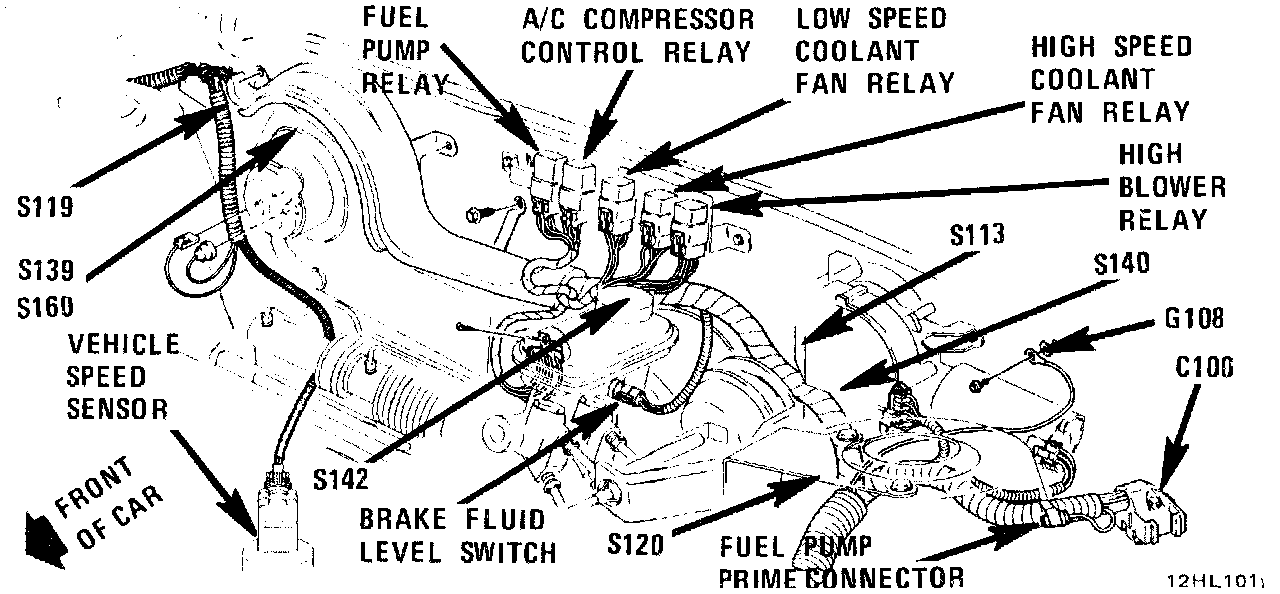

A/C Compressor Control And High Blower Relay.:
The A/C Compressor Control Relay is located at the front of the dash on the relay bracket.
