Home >> Buick >> 1988 >> Skylark L4-138 2.3L DOHC VIN D MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Testing and Inspection >> Component Tests and General Diagnostics >> With Air Conditioning >> Test D: Blower Relay Test >> Table 1

Table 1

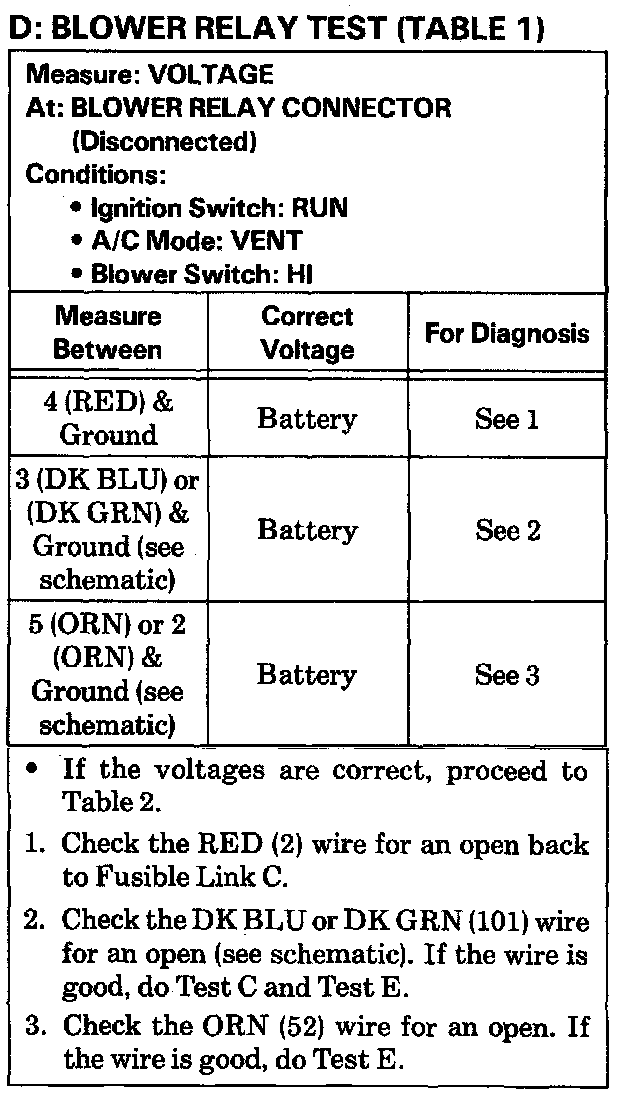

Test D Blower Relay Test Table 1.:
