Home >> Buick >> 1988 >> Skylark L4-138 2.3L DOHC VIN D MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Console

Console

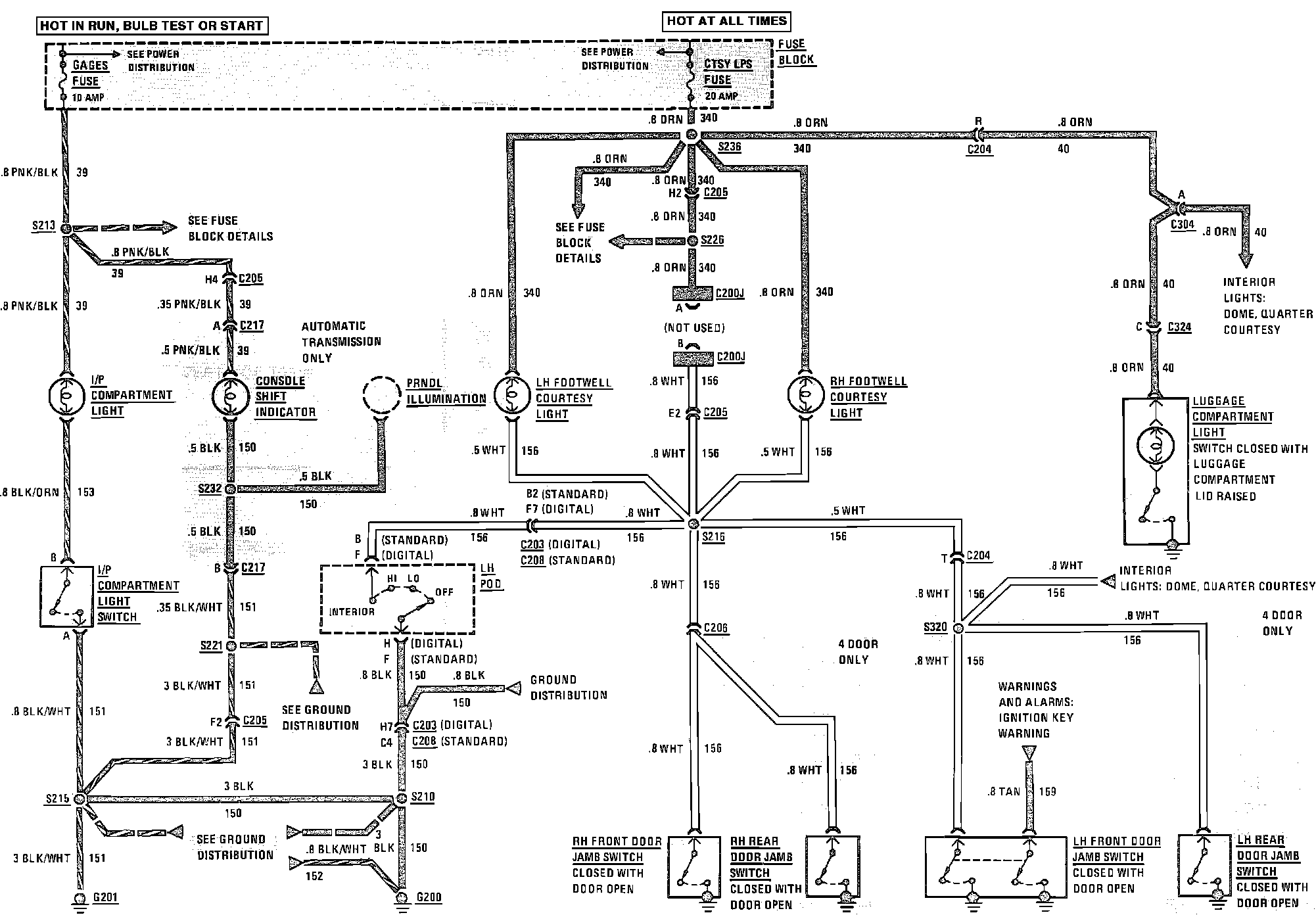

Console, Footwell Courtesy, I/P & Luggage Compartment:
