Owner Notification & Change, Parts & Service Procedure Information

OWNER NOTIFICATION

Owners of vehicles involved in this campaign will be notified by Buick Motor Division (see copy of owner letter included with this bulletin).
CHANGE OF OWNER INFORMATION

Dealers are to use the Dealer Communication System (DCS) to provide Buick Motor Division with subsequent Buick owner information. By reporting a change of owner name or address of a vehicle in campaign status over the DCS, the need to send a CVAR for for that vehicle is eliminated. Terminal input instructions are covered in the DCS Manual under Section 9, Page 9-J01A and B.

PARTS INFORMATION

Parts required to complete this campaign are to be obtained from General Motors Service Parts Operations (GMSPO). To ensure these parts will be obtained as soon as possible, they should be ordered from GMSPO on a C.I.O. order with NO special instruction code, but on an advise code (2).

PART NUMBER DESCRIPTION QUANTITY/VEHICLE

25089331 Clip - Bellcrank 1

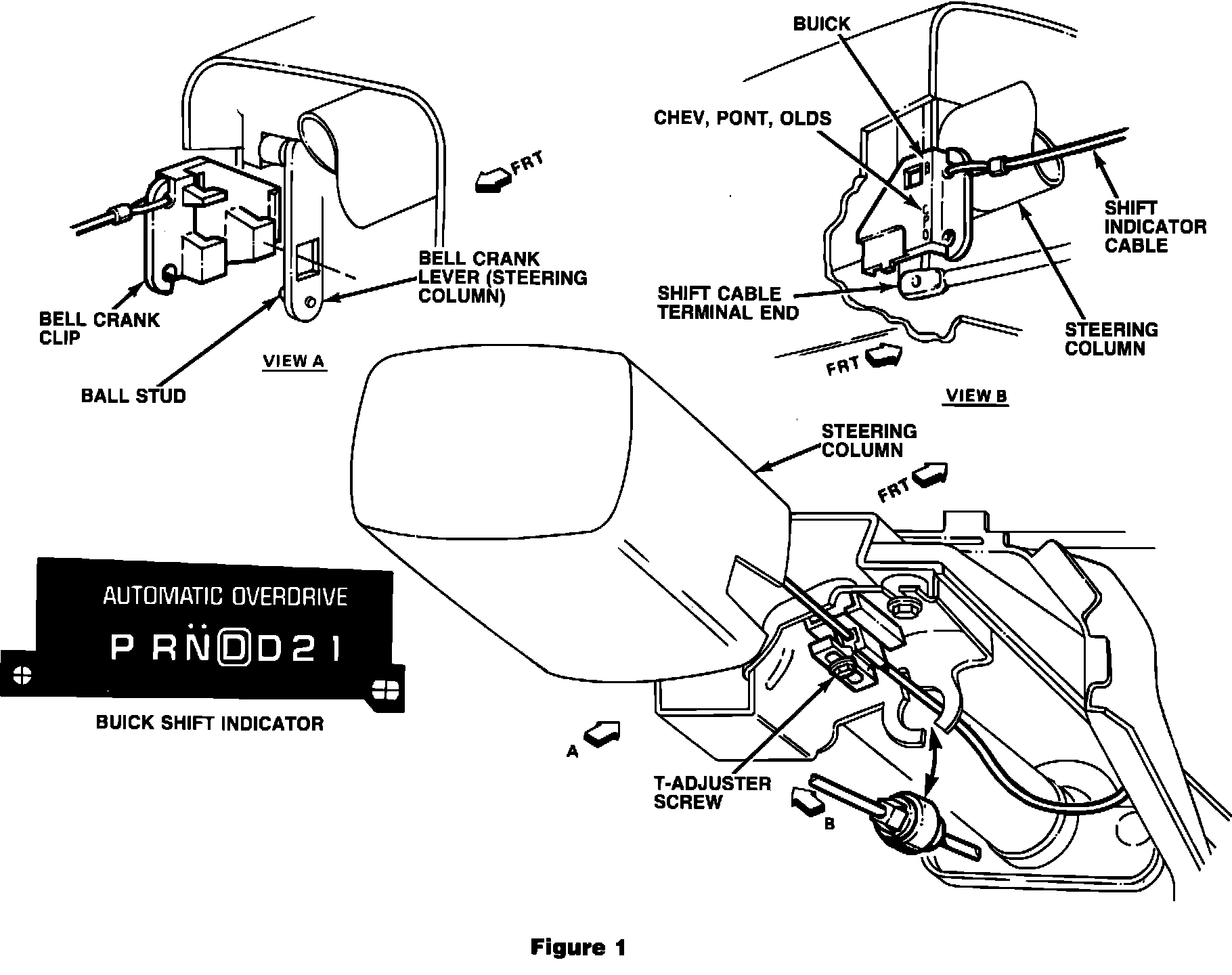

FIGURE 1:

SERVICE PROCEDURE

Bellcrank Clip Replacement

1. Place shift lever in "Park", disconnect negative battery cable and remove lower dash panel.

2. Remove shift cable from steering column ball stud.

3. Remove bellcrank clip (with shift indicator cable still attached) from bellcrank hole.

4. Disconnect shift indicator cable from removed bellcrank clip and reconnect it to new clip (Part Number 25089331) being careful to use correct hook (See Figure 1, View B).

5. Install (snap) new bellcrank clip in bellcrank hole. While pushing clip into hole it may be helpful to apply a simultaneous side load.

6. Reinstall shift cable on steering column ball stud.

7. Set parking brake, place shift lever in "Neutral" and check alignment of shift (PRNDL) indicator. Shift indicator needle should be between both alignment dots over the "N". If adjustment is necessary, loosen T-adjuster and adjust fore or aft until proper alignment exists. Hand tighten screw and place shifter in "Park".

8. Reinstall lower dash panel and reconnect negative battery cable.

9. Install Campaign Identification Label.
