Canister Purge Solenoid: Service and Repair

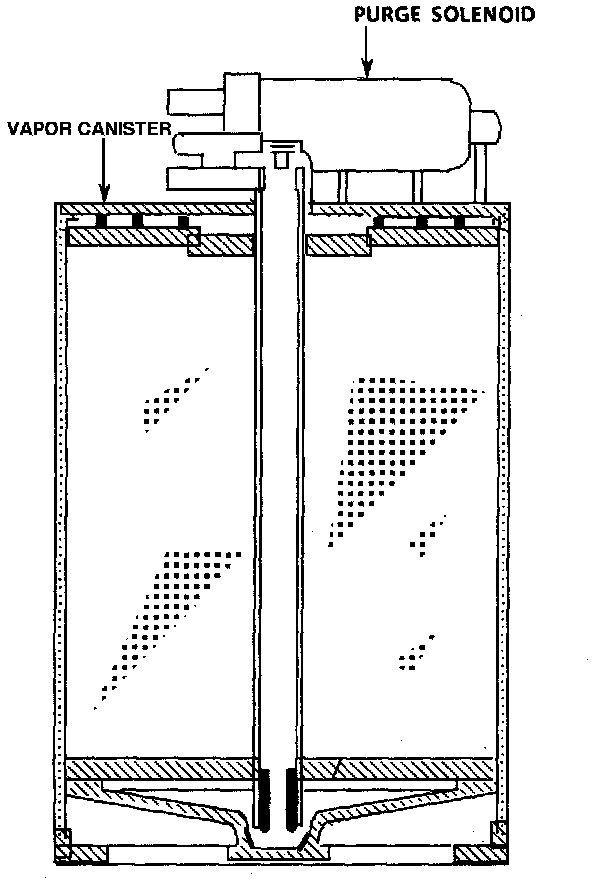

Encapsulated Purge Solenoid:

REMOVAL
1. Disconnect the negative battery cable.
2. Disconnect the electrical connector and hoses from solenoid.
3. Remove the solenoid.

INSTALLATION
1. Install the solenoid.
2. Connect the hoses and electrical connector on solenoid.
3. Connect the negative battery cable.

NOTE: The Electronic Control Module (ECM) will need to relearn the Idle Air Control (IAC) valve pintle position following the battery reconnection. This procedure allows the ECM memory to be updated and provides for a stable idle speed.

Idle Learn Procedure
1. Install the Tech 1 "SCAN" tool.
2. Ignition "ON" engine "OFF".
3. Select the "IAC SYSTEM", then "IDLE LEARN" in the "MISC. TEST" mode.
4. Proceed with the idle learn as directed by the Tech 1 "SCAN" tool.
