Buick
>>
1988
>>
Regal V6-173 2.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G101
G101

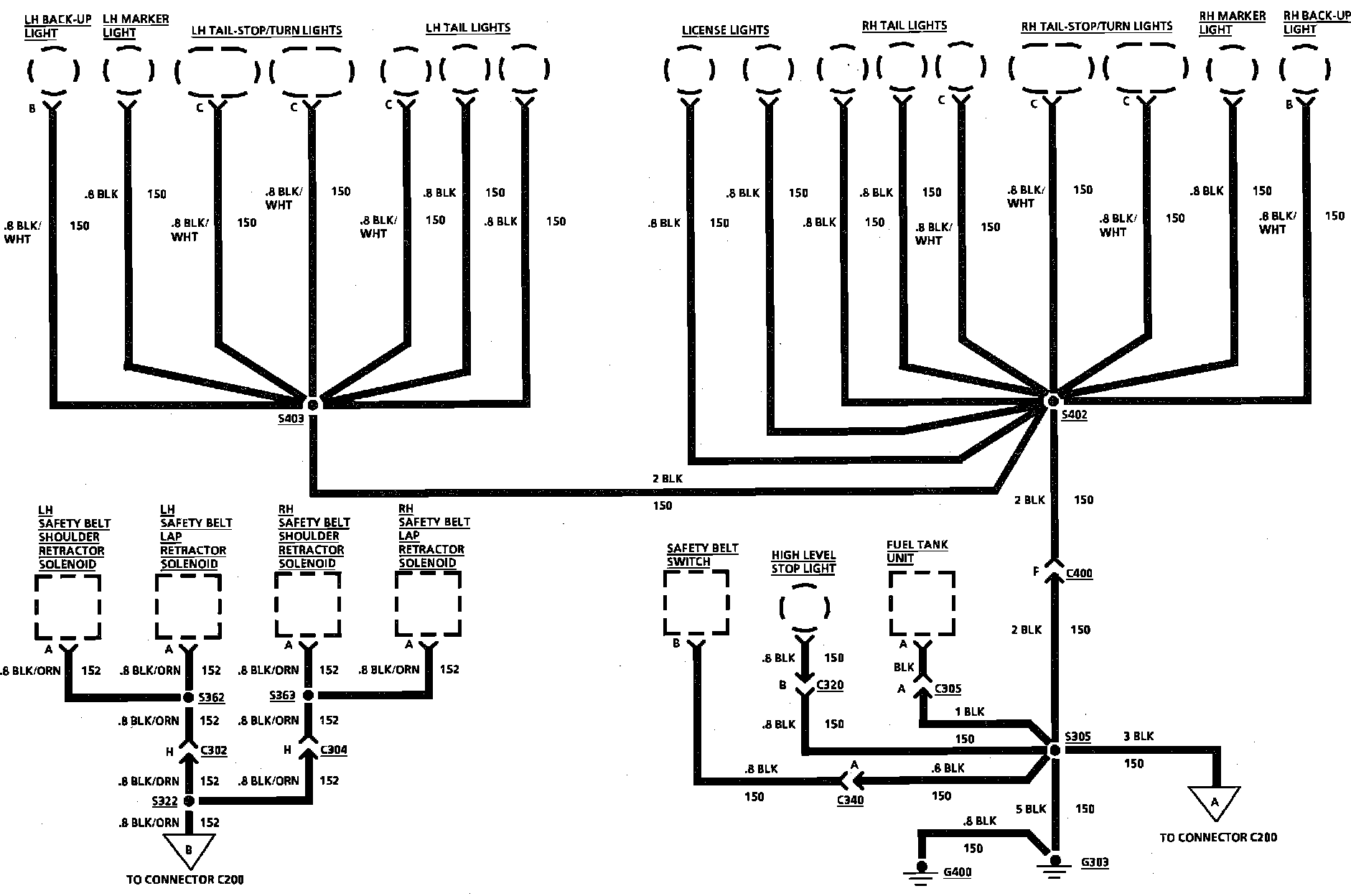

Ground Distribution (G101 & G303):
