Home
>>
Buick
>>
1988
>>
Regal V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Pulse
Pulse

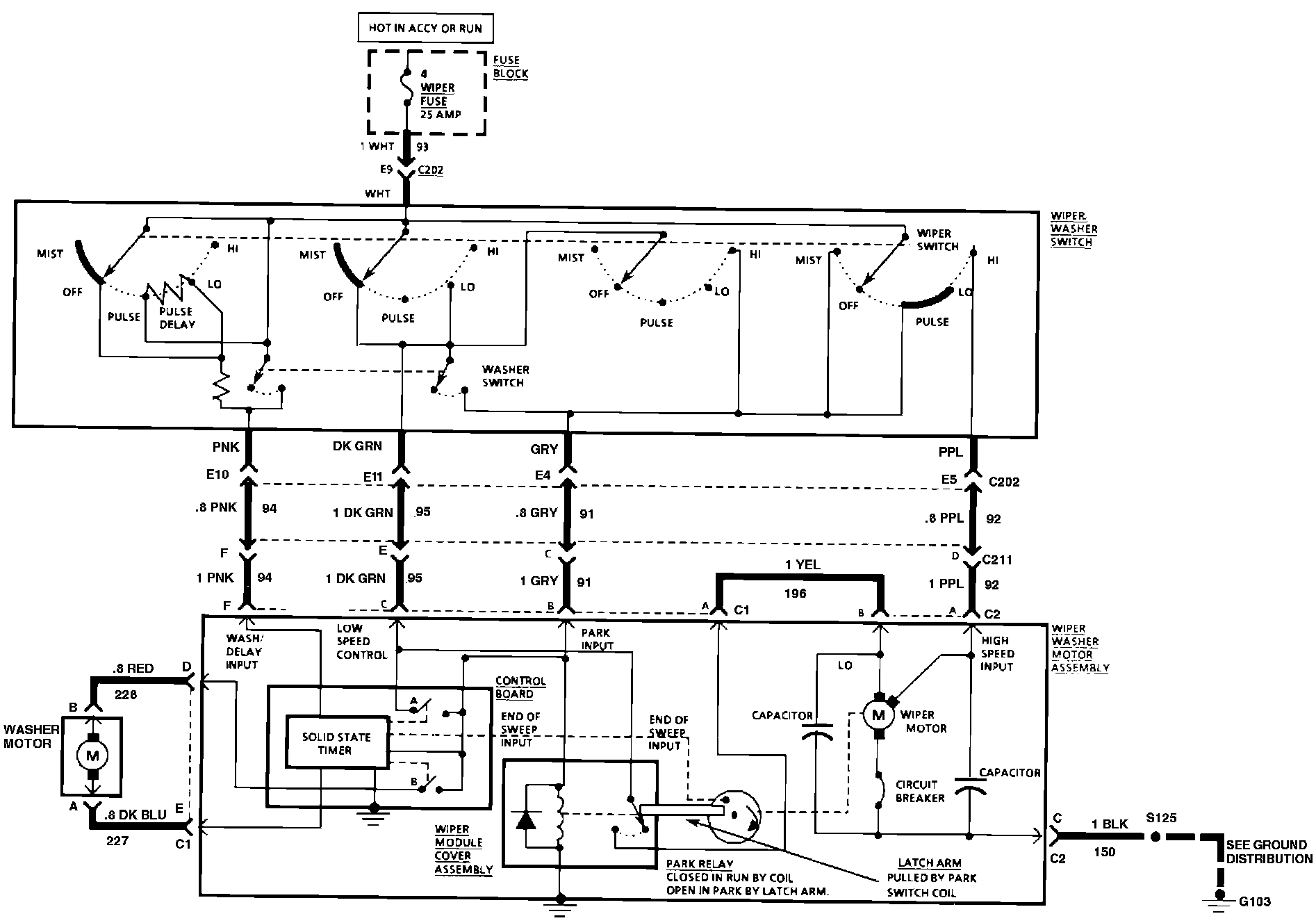

Washer & Wiper Wiring Circuit (With Pulse):
