Turn Signals
Turn Signals

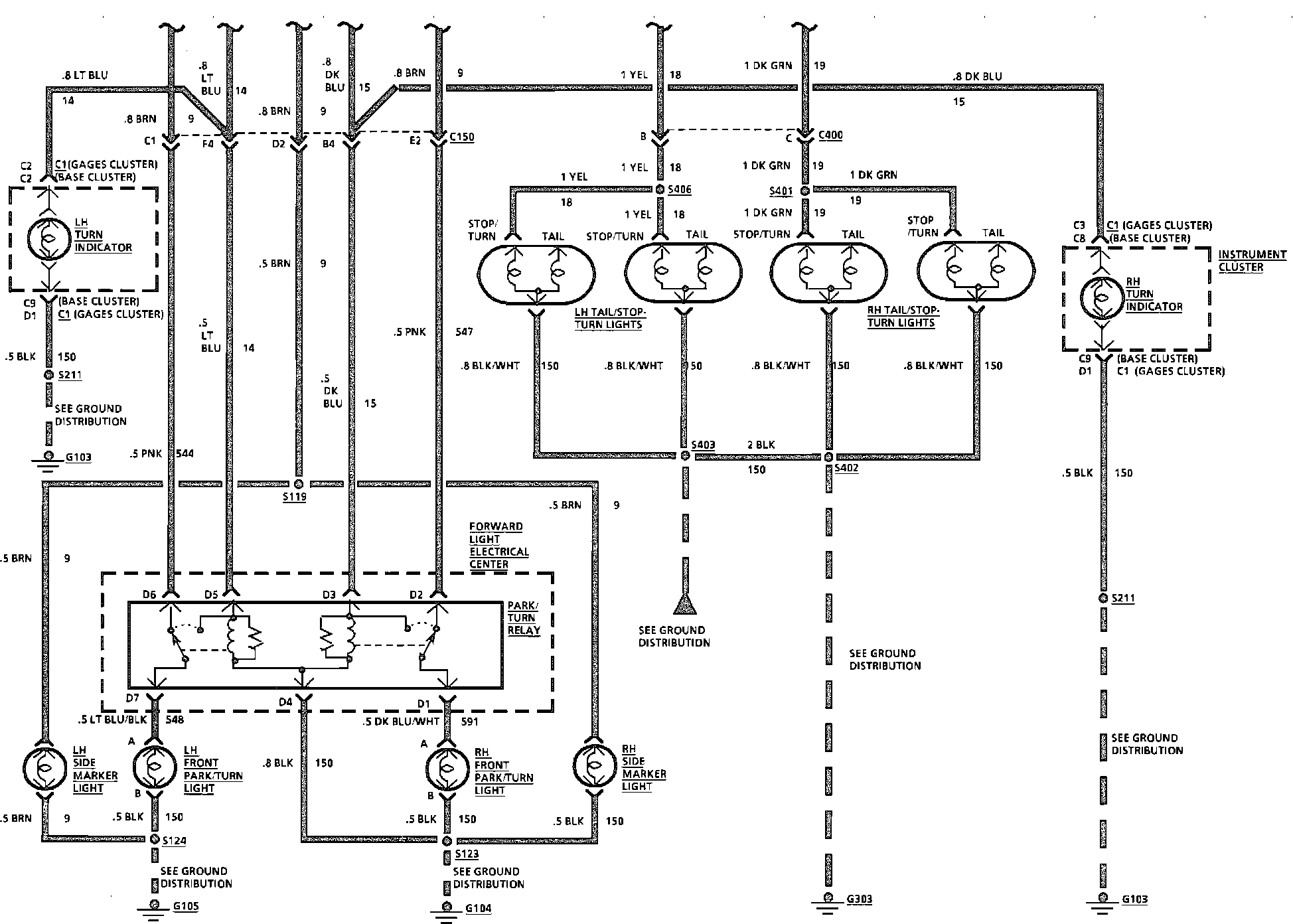

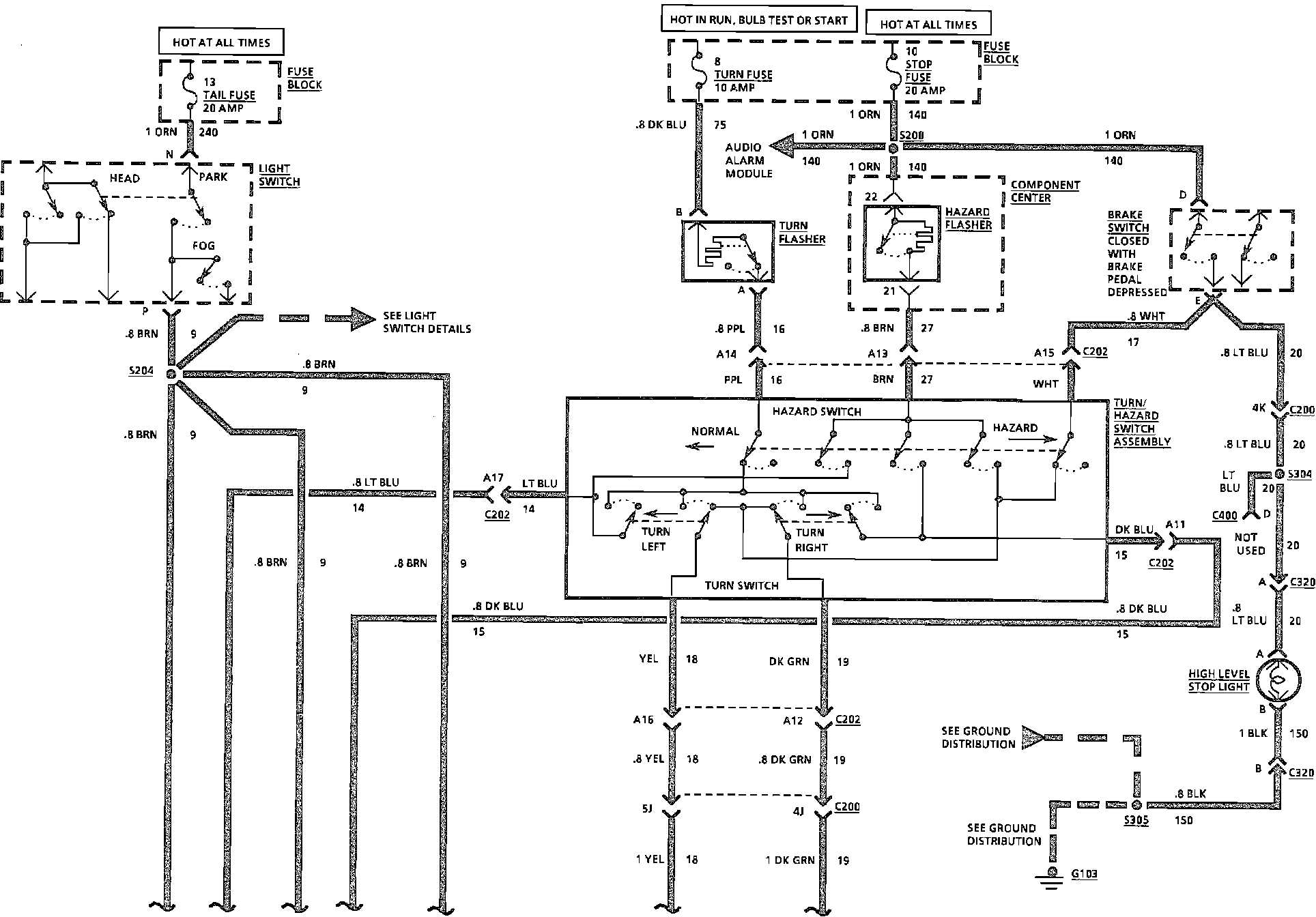

Exterior Lamps Wiring Circuit (Hazard, Stop & Turn):
Exterior Lamps Wiring Circuit (Hazard, Stop & Turn):
