Home
>>
Buick
>>
1988
>>
Regal V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seat Belt Systems
Seat Belt Systems

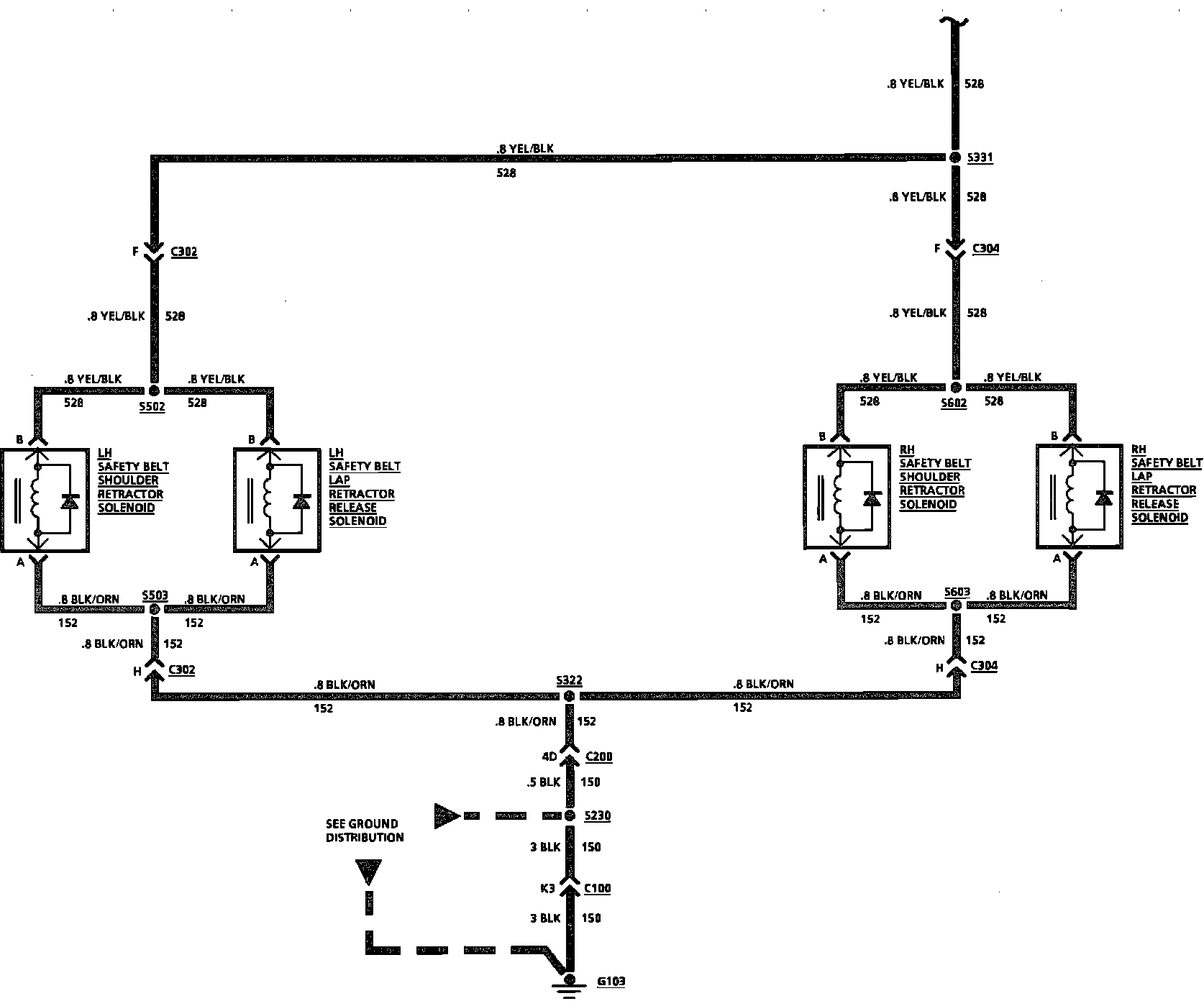

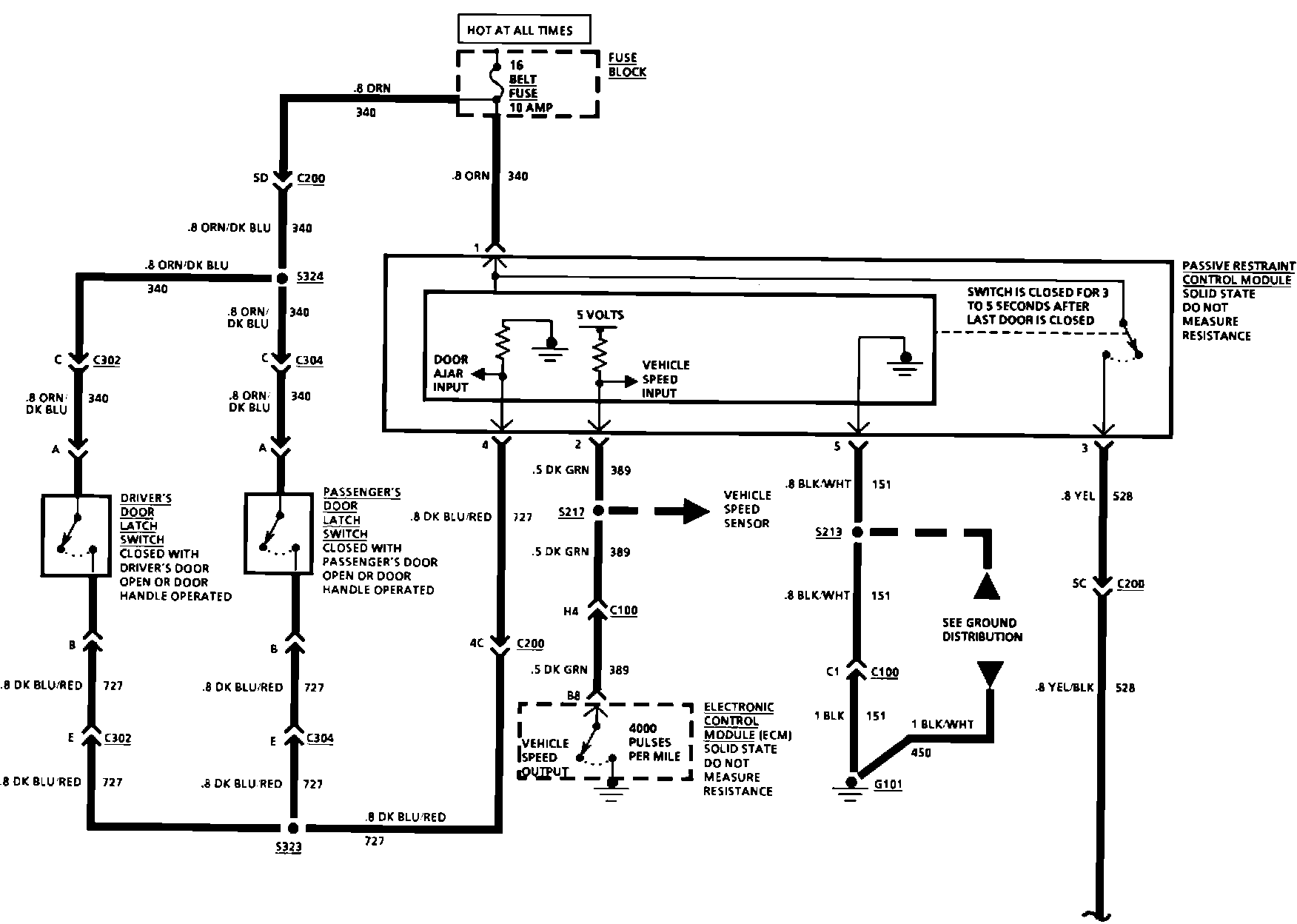

Automatic Safety Belts Wiring Circuit:
Automatic Safety Belts Wiring Circuit:
