Buick
>>
1988
>>
Regal V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Power, Ground & Engine Data Sensors
Power, Ground & Engine Data Sensors

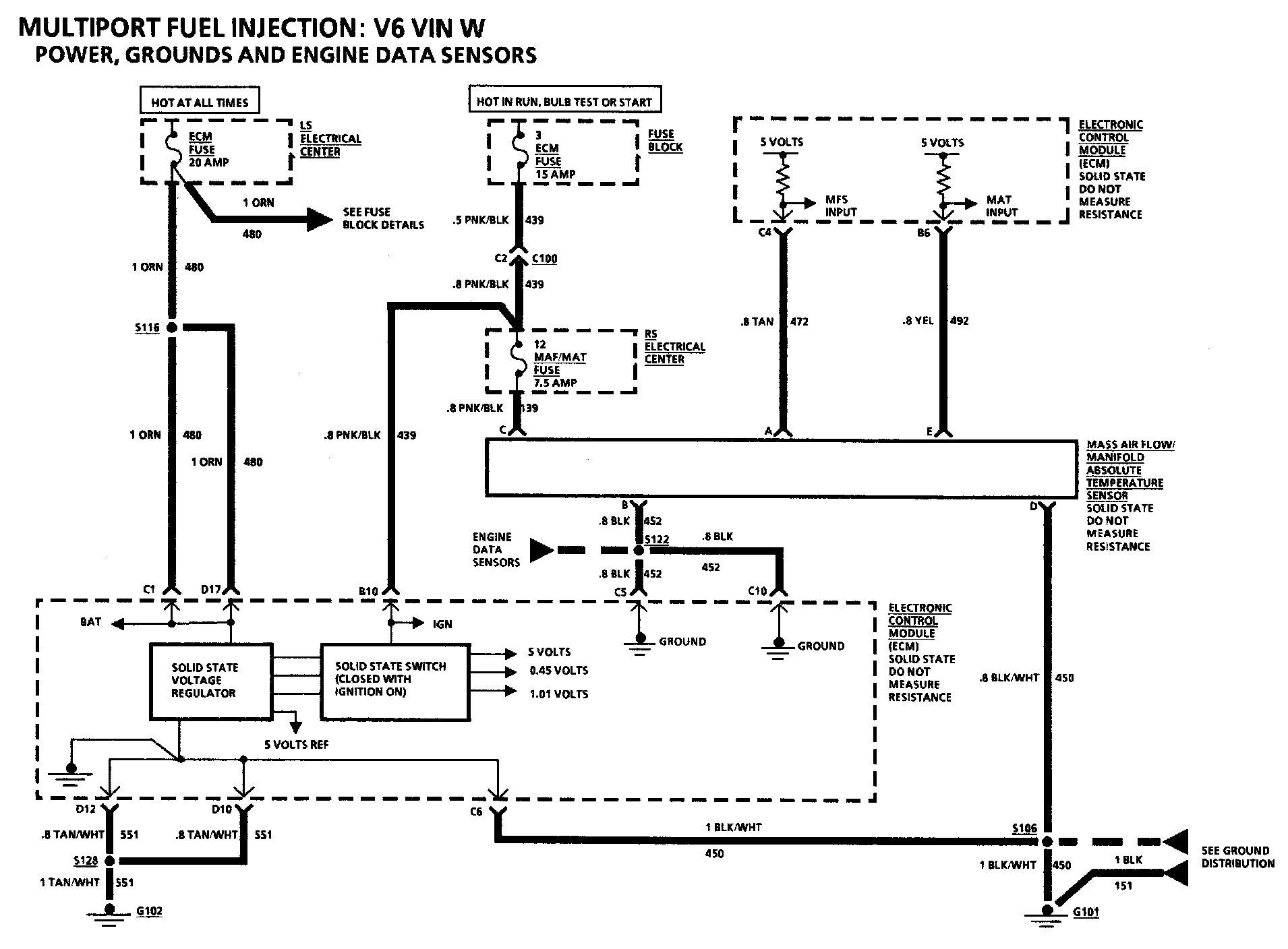

POWER, GROUNDS AND ENGINE DATA SENSORS:
