Without Speed Density Update

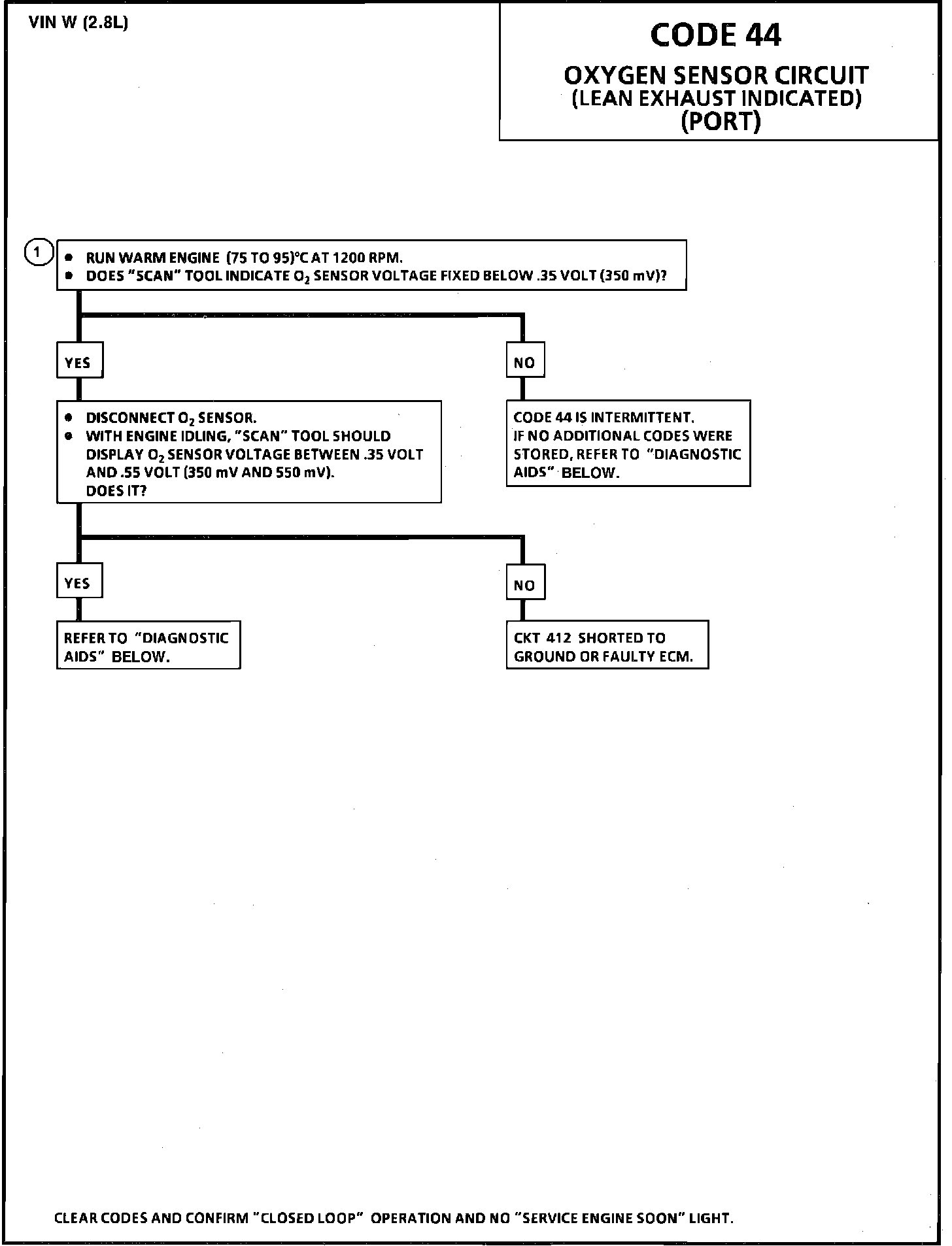

Chart - Code 44 Oxygen Sensor Circuit, Lean Exhaust Indication:

Wiring Diagram for Oxygen Sensor Circuit.:

CODE 44 OXYGEN SENSOR CIRCUIT (LEAN EXHAUST INDICATED)


Test Description: Numbers below refer to circled numbers on the diagnostic chart. Code 44 will set if-.
Voltage on CKT 412 remains below .2 volt for 60 seconds or more;
The system is operating in "Closed Loop".
No Code 33 or 34.

Diagnostic Aids:

Using the "Scan", observe the block learn values at different rpm and air flow conditions. The "Scan" also displays the block cells, so the block learn values can be checked in each of the cells to determine when the Code 44 may have been set. If the conditions for Code 44 exists the block learn values will be around 150.

02 Sensor Wire Sensor pigtail may be mispositioned and contacting the exhaust manifold. Check for intermittent ground in wire between connector and sensor,

Lean Injector(s) Perform injector balance test CHART C-2A.

Fuel Contamination Water, even in small amounts, near the in-tank fuel pump inlet can be delivered to the injectors. The water causes a lean exhaust and can set a Code 44.

Fuel Pressure System will be lean if pressure is too low. It may be necessary to monitor fuel pressure while driving the car at various road speeds and/or loads to confirm. See "Fuel System Diagnosis" CHART A-7.

Exhaust Leaks If there is an exhaust leak, the engine can cause outside air to be pulled into the exhaust and past the sensor. Vacuum or crankcase leaks can cause a lean condition.

If the above are OK, it is a faulty oxygen sensor.

MAF Sensor A mass air flow (MAF) sensor output that causes the ECM to sense a lower than normal air flow will cause the system to go lean. Disconnect the MAF sensor and if the lean condition is gone, check for Code 34.
