Home
>>
Buick
>>
1988
>>
Reatta V6-231 3.8L VIN C SFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

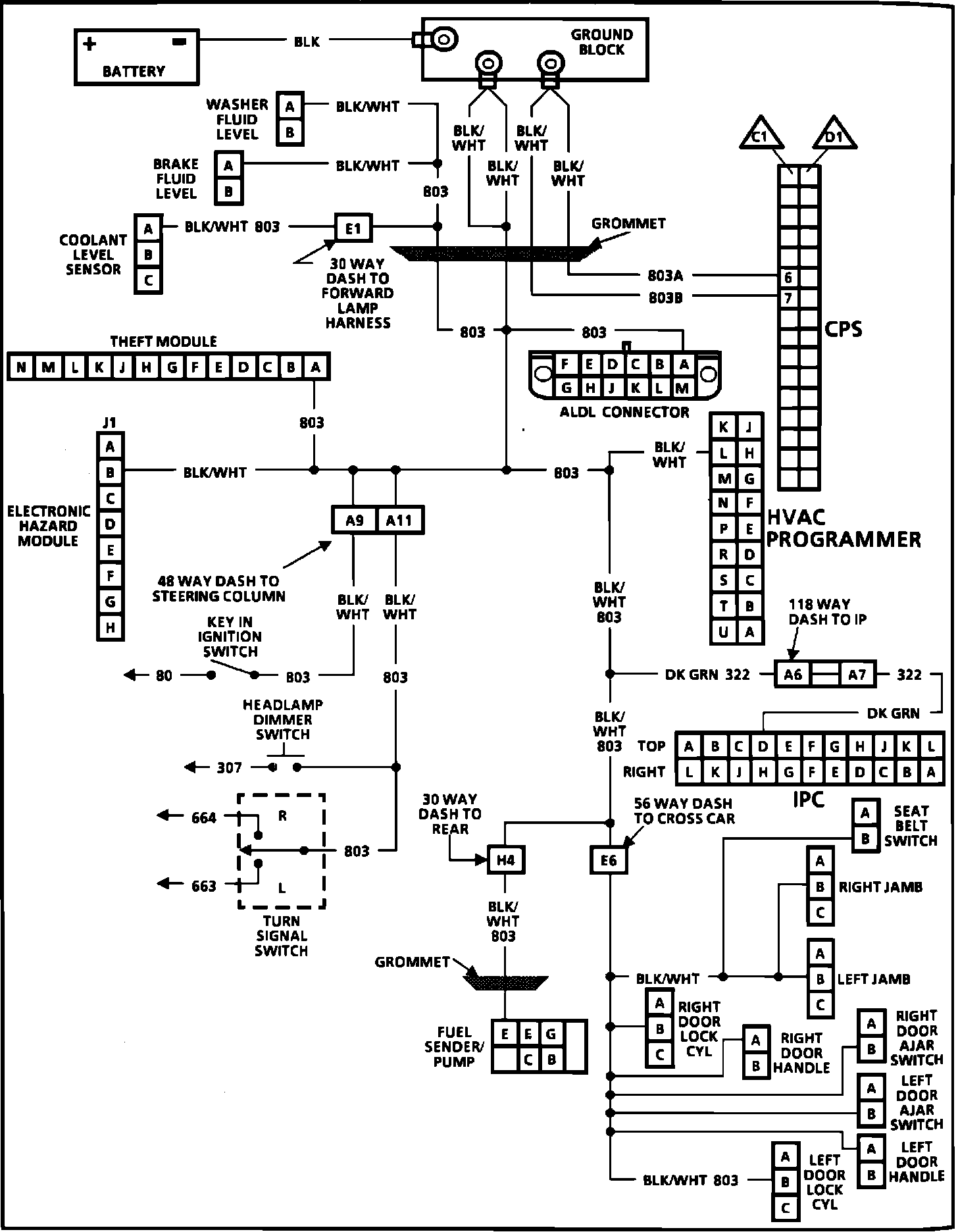

Isolated Ground Schematic
Isolated Ground Schematic
Isolated Ground Schematic:
