Buick
>>
1988
>>
Reatta V6-231 3.8L VIN C SFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Circuit Breaker
>>
Diagrams
>>
Electrical Diagrams
>>

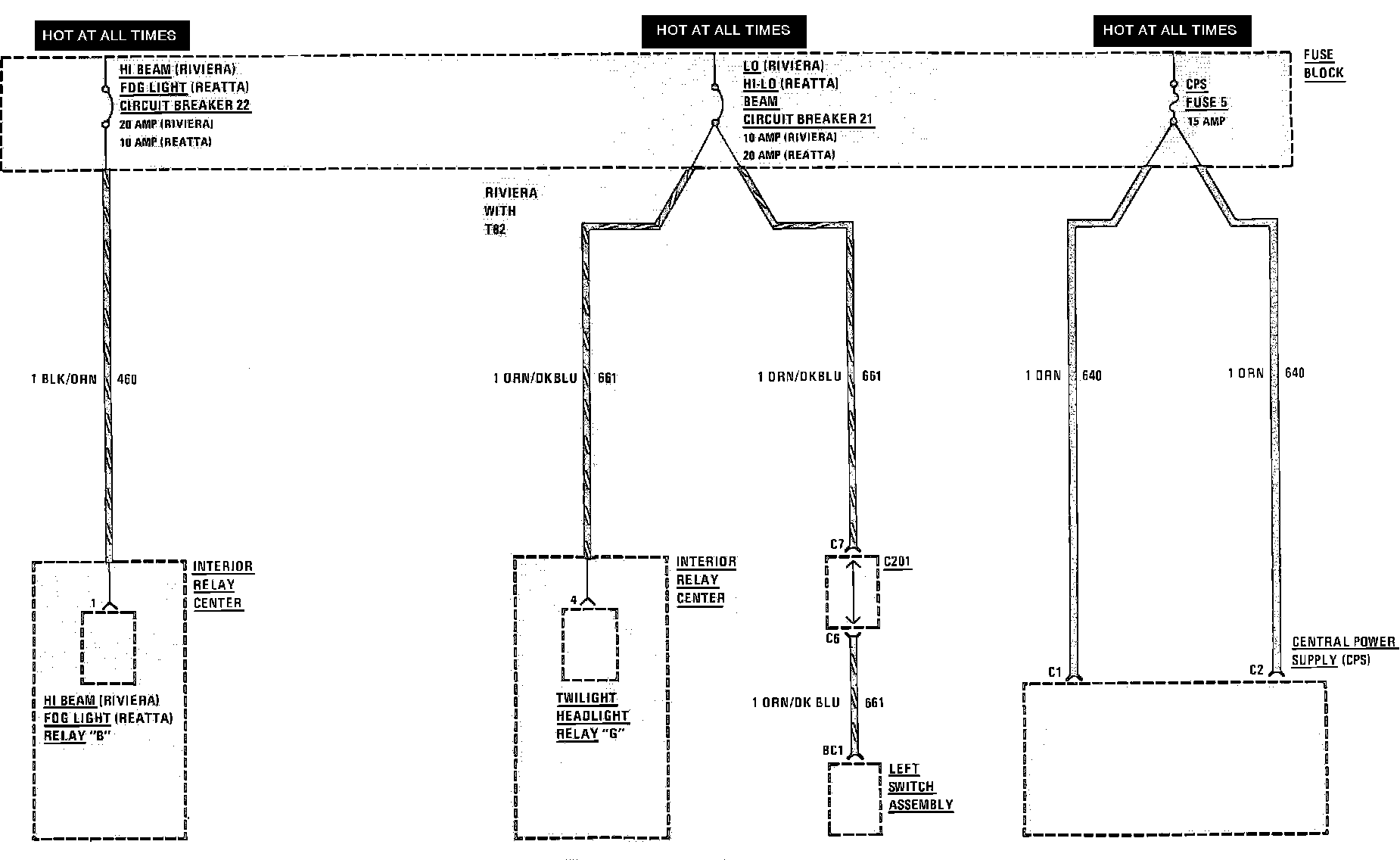

Circuit Breaker 21 - LO/Hi-LO
Circuit Breaker 21 - LO/Hi-LO
Fuse Block Detail (Fuse 5 & Circuit Breaker 21 & 22):
