Power Trunk / Liftgate Lock Actuator
Power Trunk / Liftgate Lock Actuator

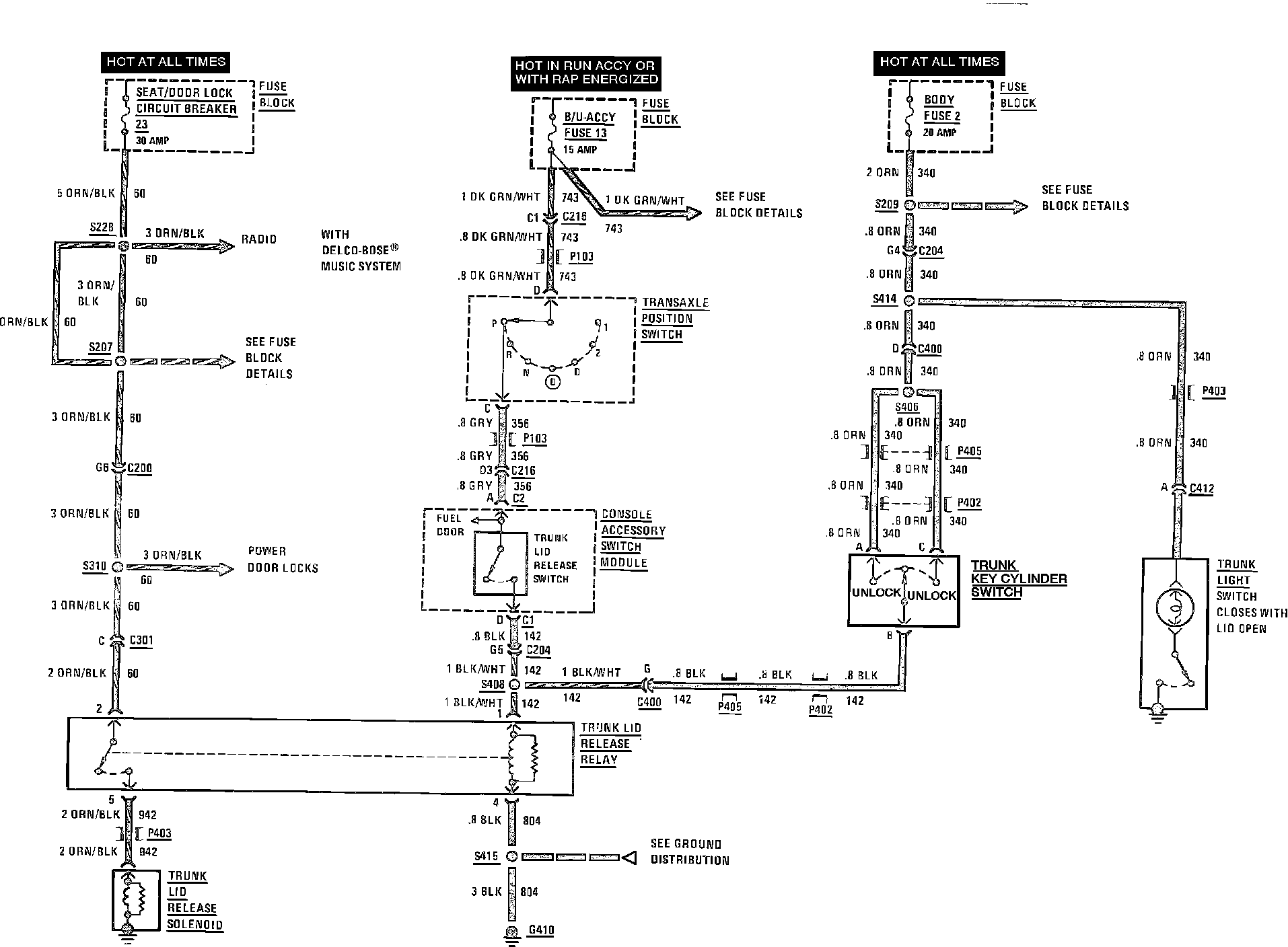

Trunk Lid Release Wiring Circuit:
