Home
>>
Buick
>>
1988
>>
LeSabre Estate Wagon V8-307 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution
>>

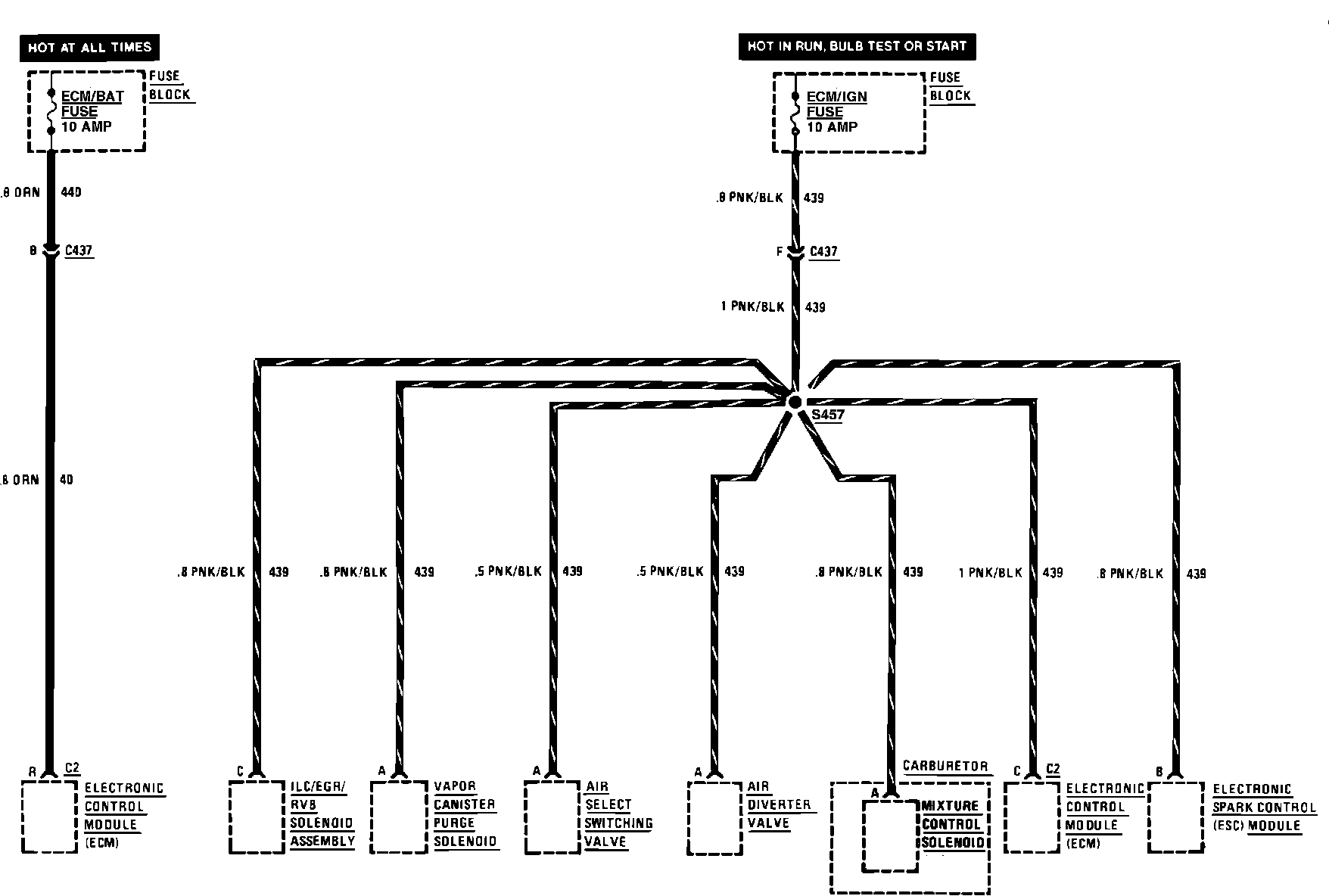

ECM/Battery Fuse & ECM/Ignition Fuse
ECM/Battery Fuse & ECM/Ignition Fuse
ECM/Battery Fuse & ECM/Ignition Fuse:
