Home
>>
Buick
>>
1988
>>
LeSabre Estate Wagon V8-307 5.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

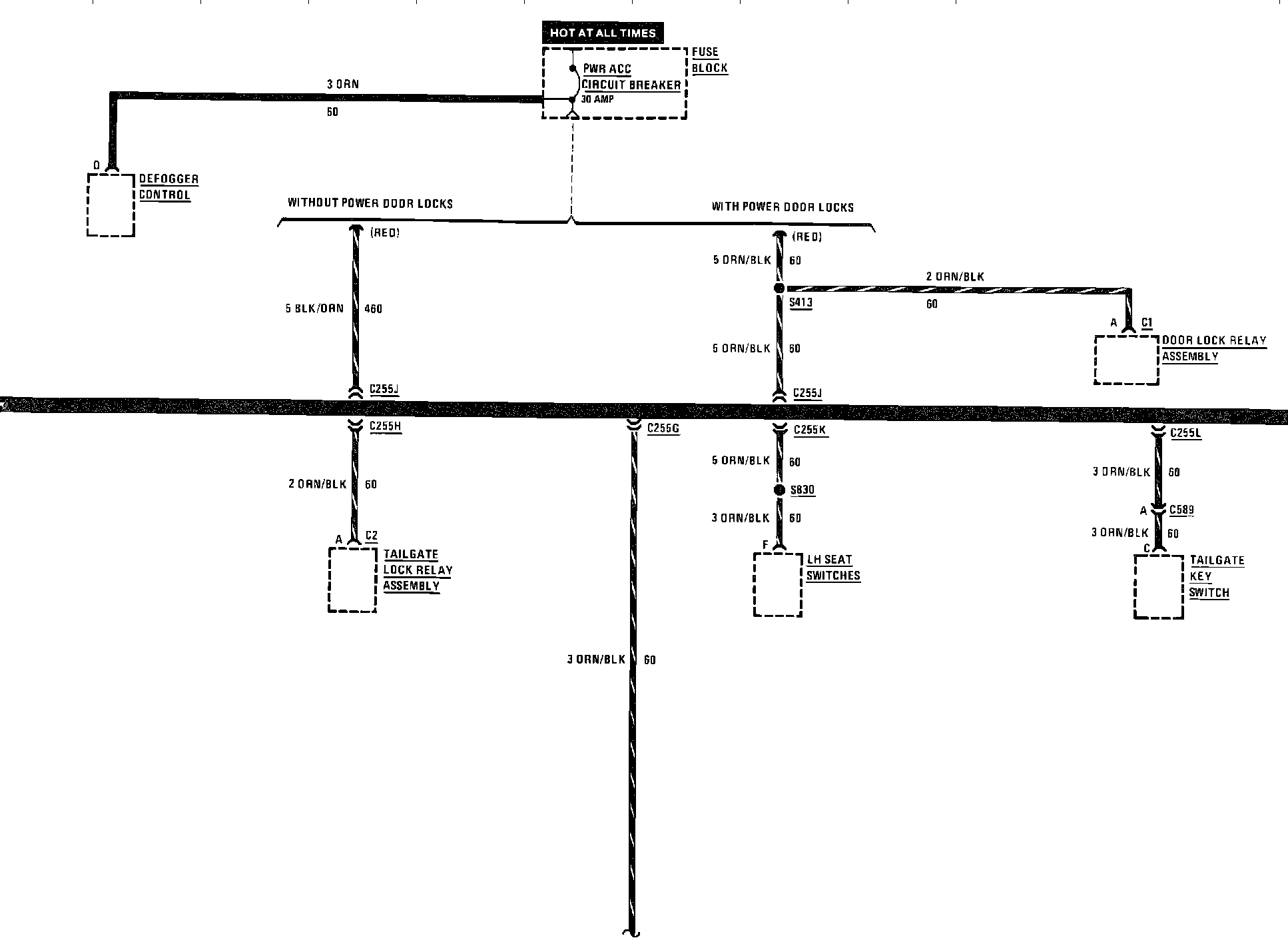

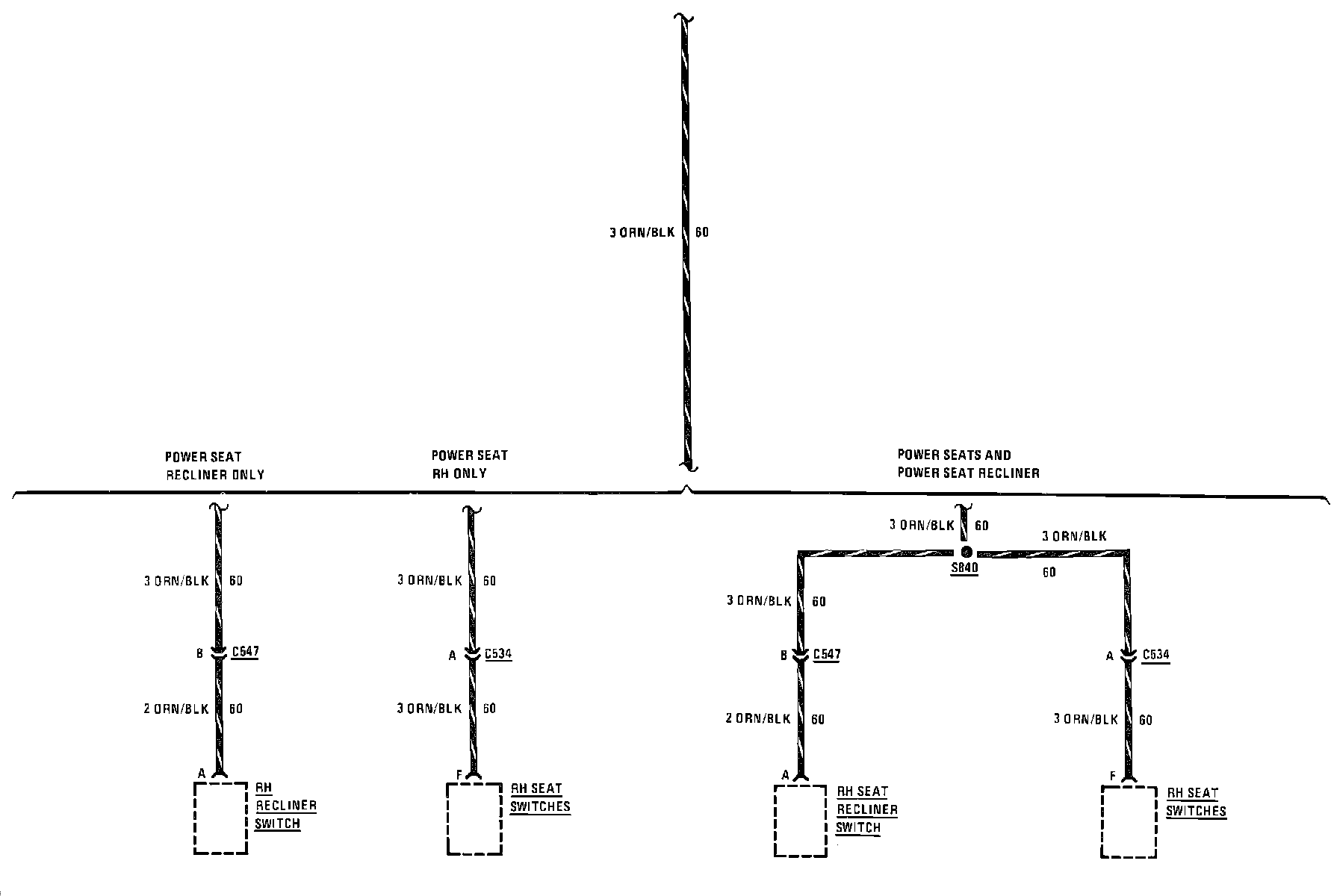

Power Accessory Circuit Breaker
Power Accessory Circuit Breaker
Power Accessory Circuit Breaker:
Power Accessory Circuit Breaker:
