LeSabre Estate Wagon V8-307 5.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse Block Diagrams
Fuse Block Diagrams

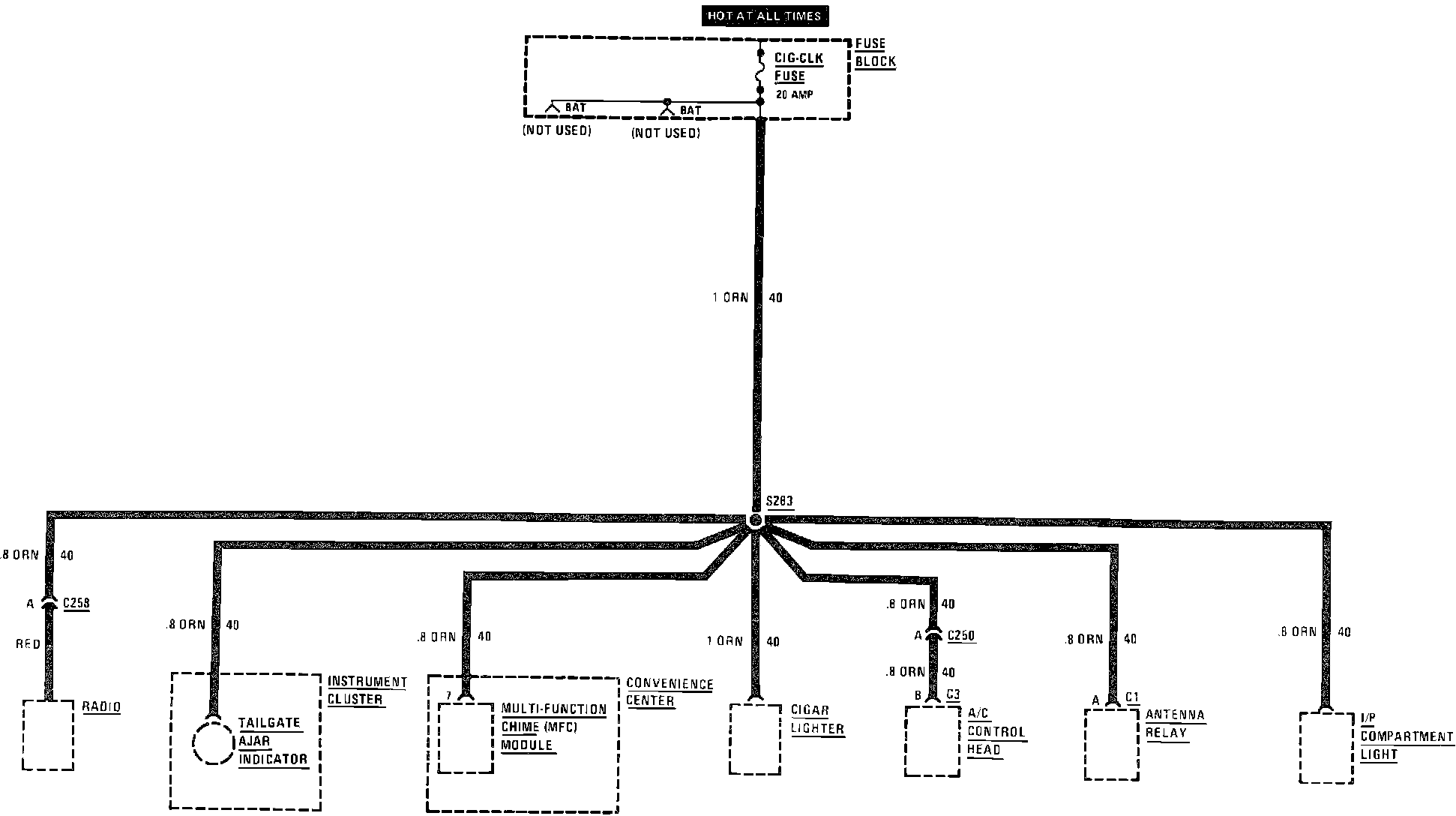

Cigar Lighter/Clock Fuse:
