Buick
>>
1988
>>
LeSabre Estate Wagon V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
Power Window Circuit Breaker
Power Window Circuit Breaker

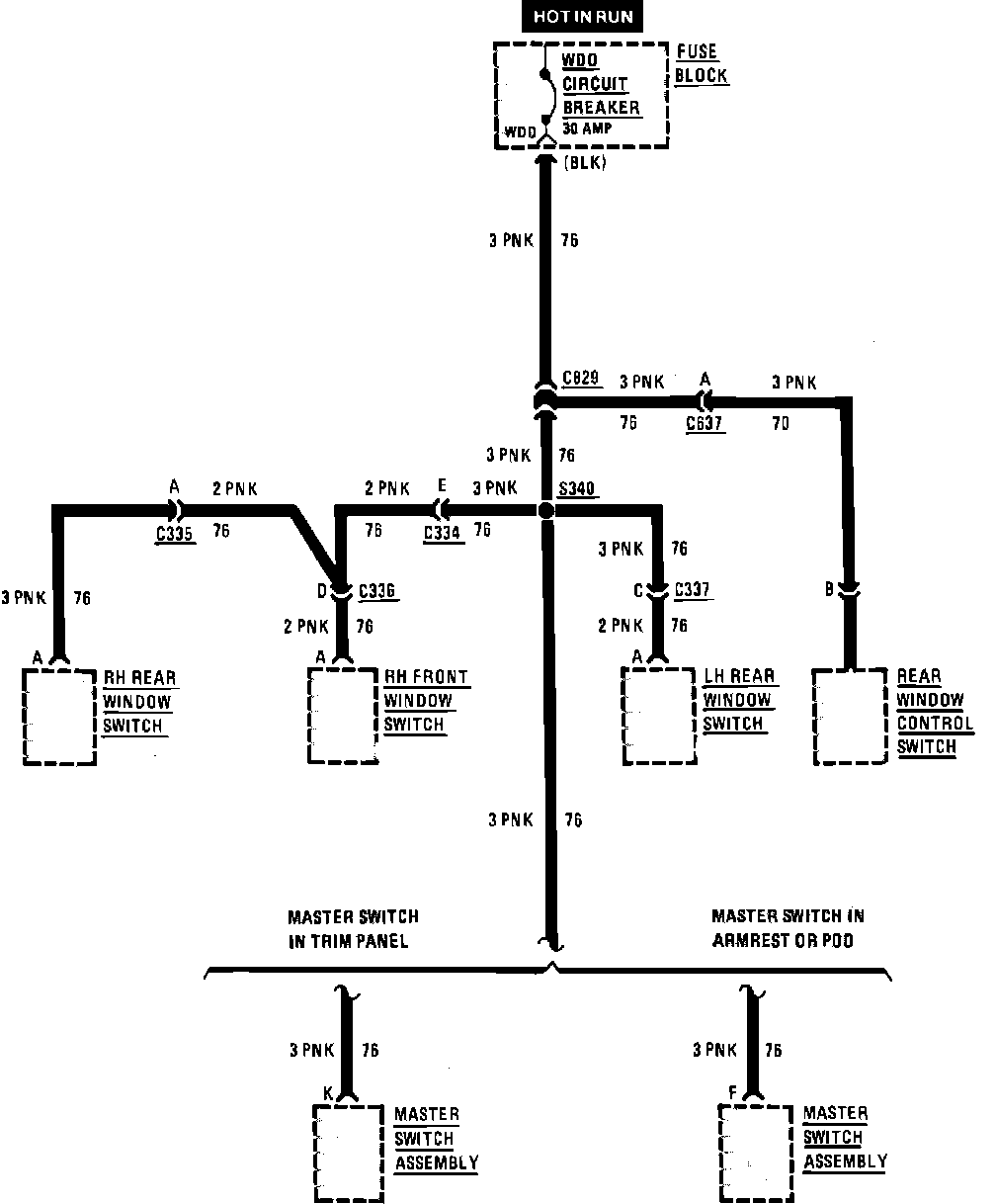

Fuse Block Details (Window Circuit Breaker):
