Buick
>>
1988
>>
LeSabre Estate Wagon V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Fuse Block Details
Fuse Block Details

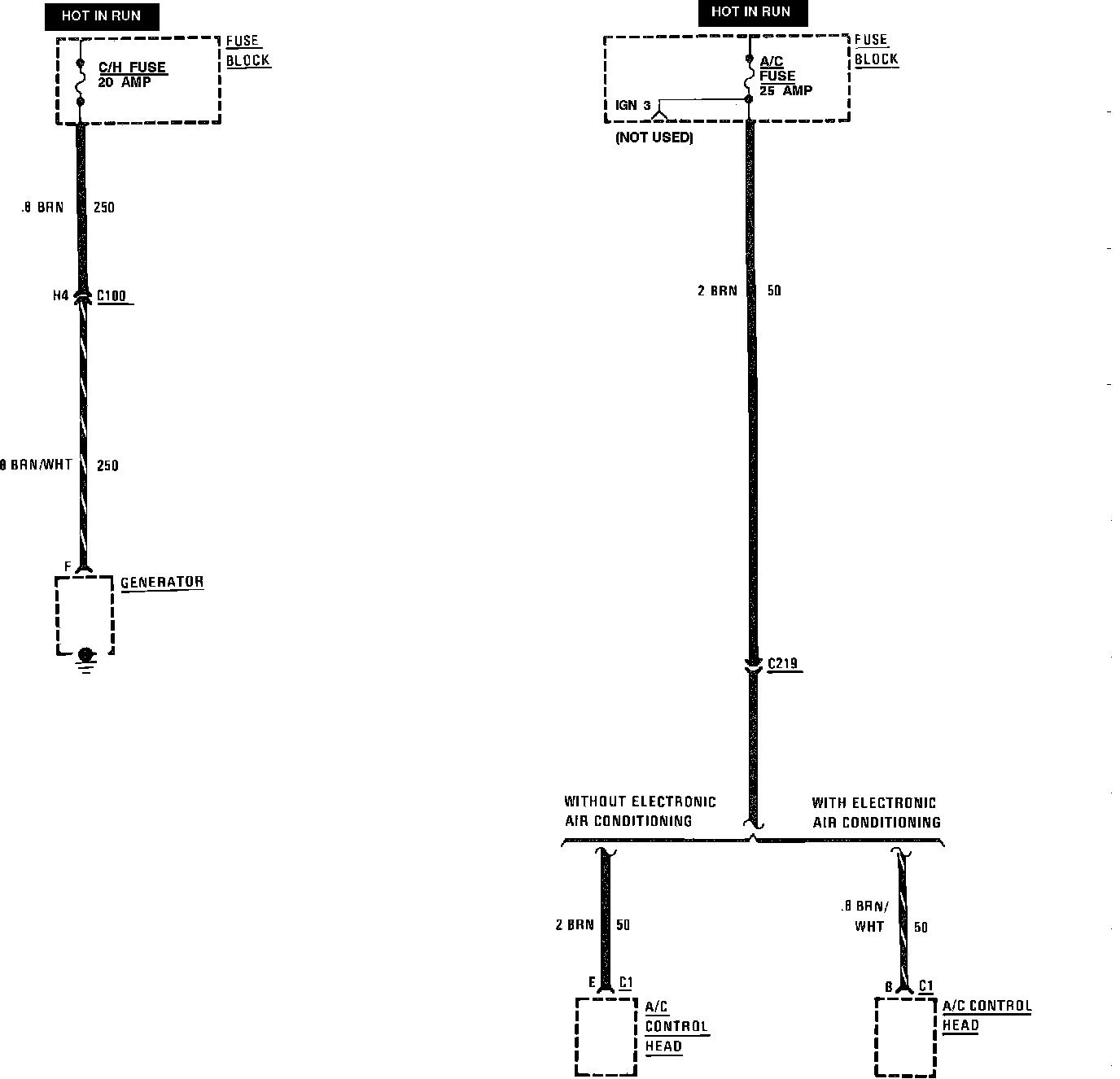

A/C & Choke Heater Fuse, Seat Belt/ACC Fuse:

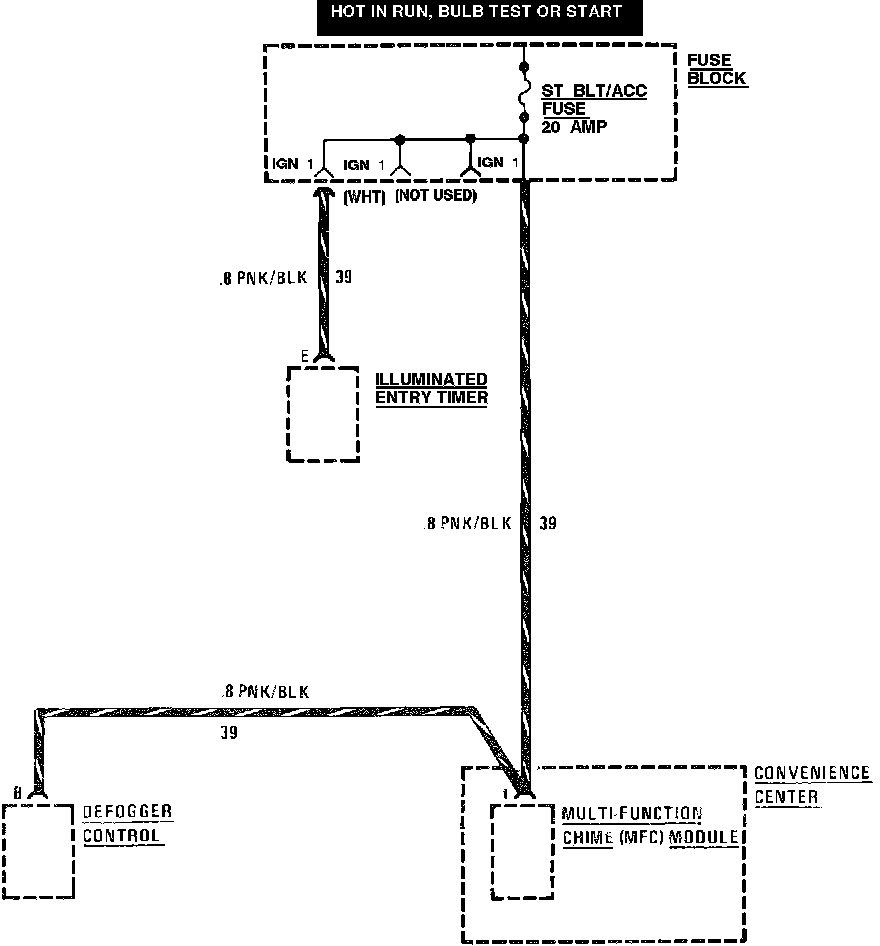

A/C & Choke Heater Fuse, Seat Belt/ACC Fuse:
