Buick
>>
1988
>>
Electra V6-231 3.8L VIN C SFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>

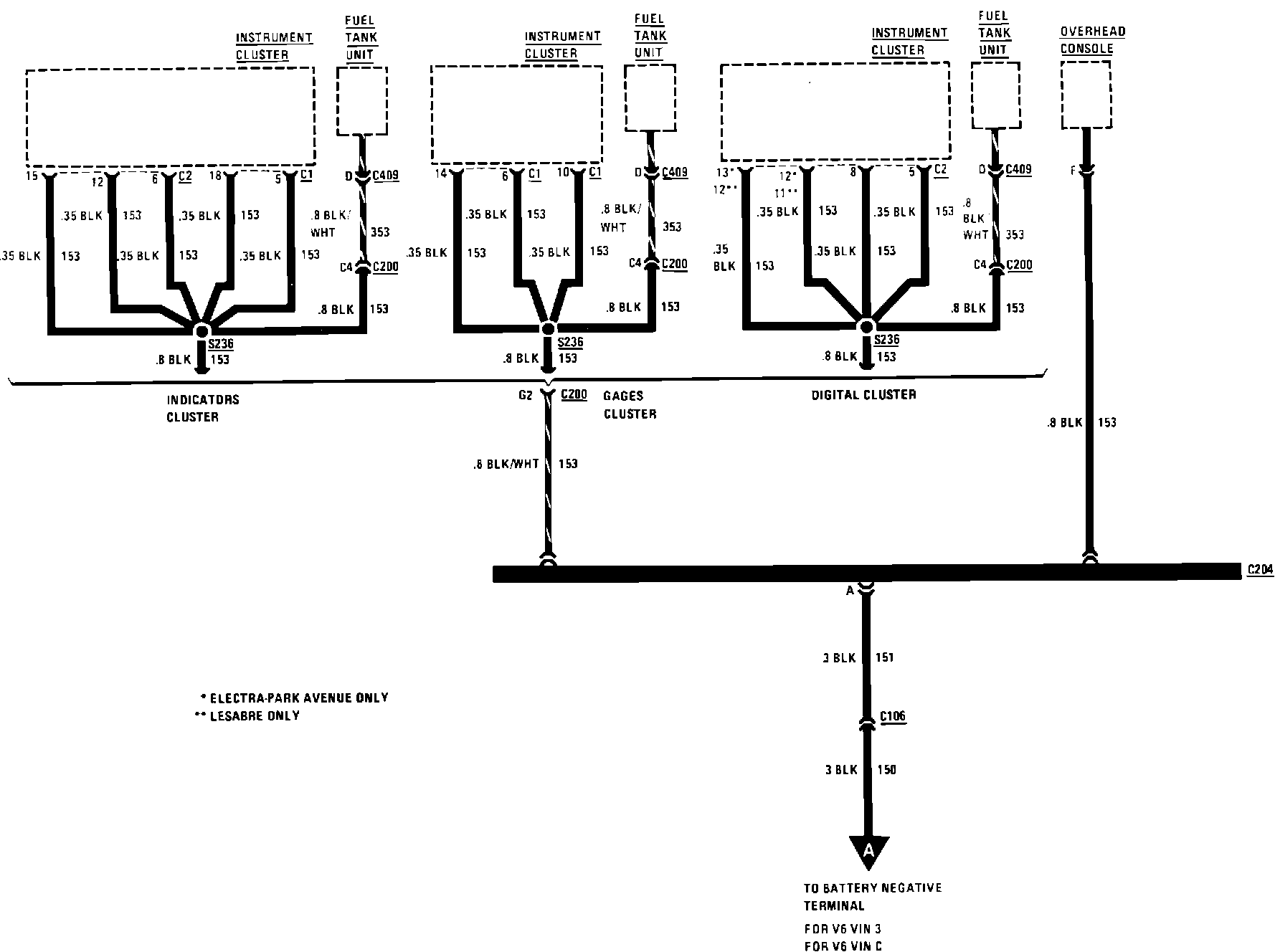

Clean Ground
Clean Ground
Clean Ground:
