Home
>>
Buick
>>
1988
>>
Electra V6-231 3.8L VIN C SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
ECM Power & Grounds
ECM Power & Grounds

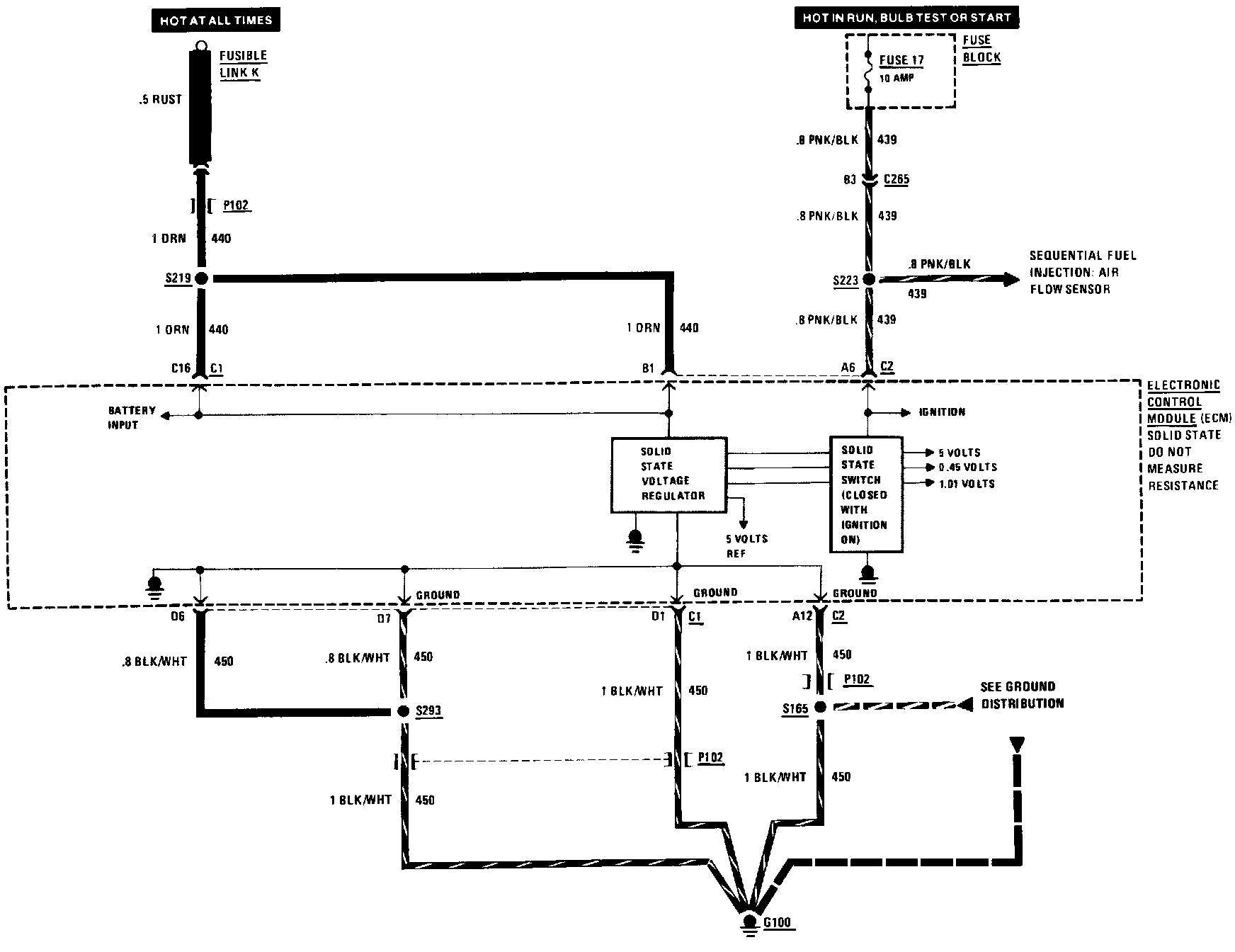

ECM Power And Ground:
