System Diagram
>>
Illuminated Entry System
>>
Less Keyless Entry
Less Keyless Entry

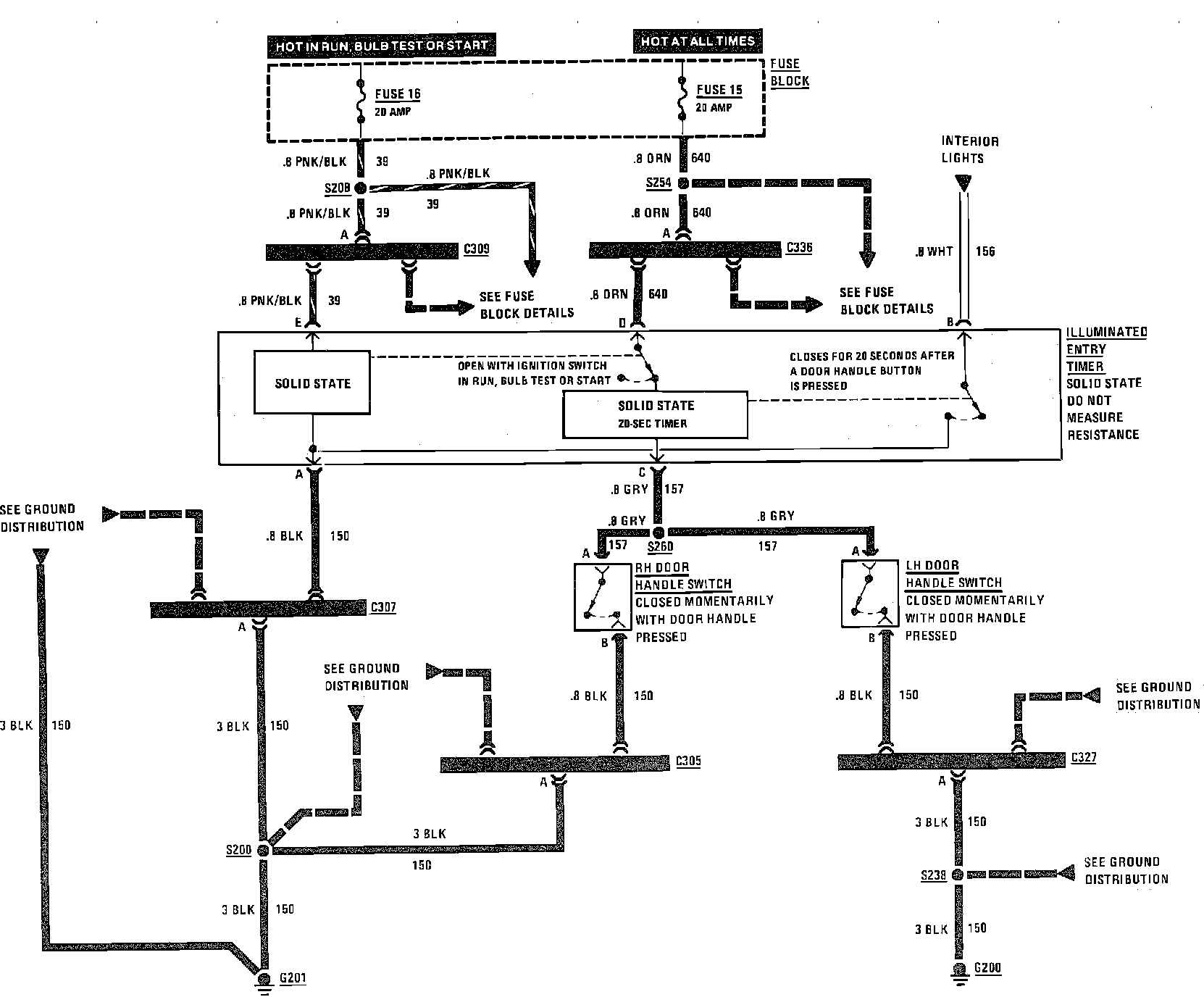

Illuminated Entry System Wiring Circuit (Less Keyless Entry System):
