Keyless Entry
Keyless Entry

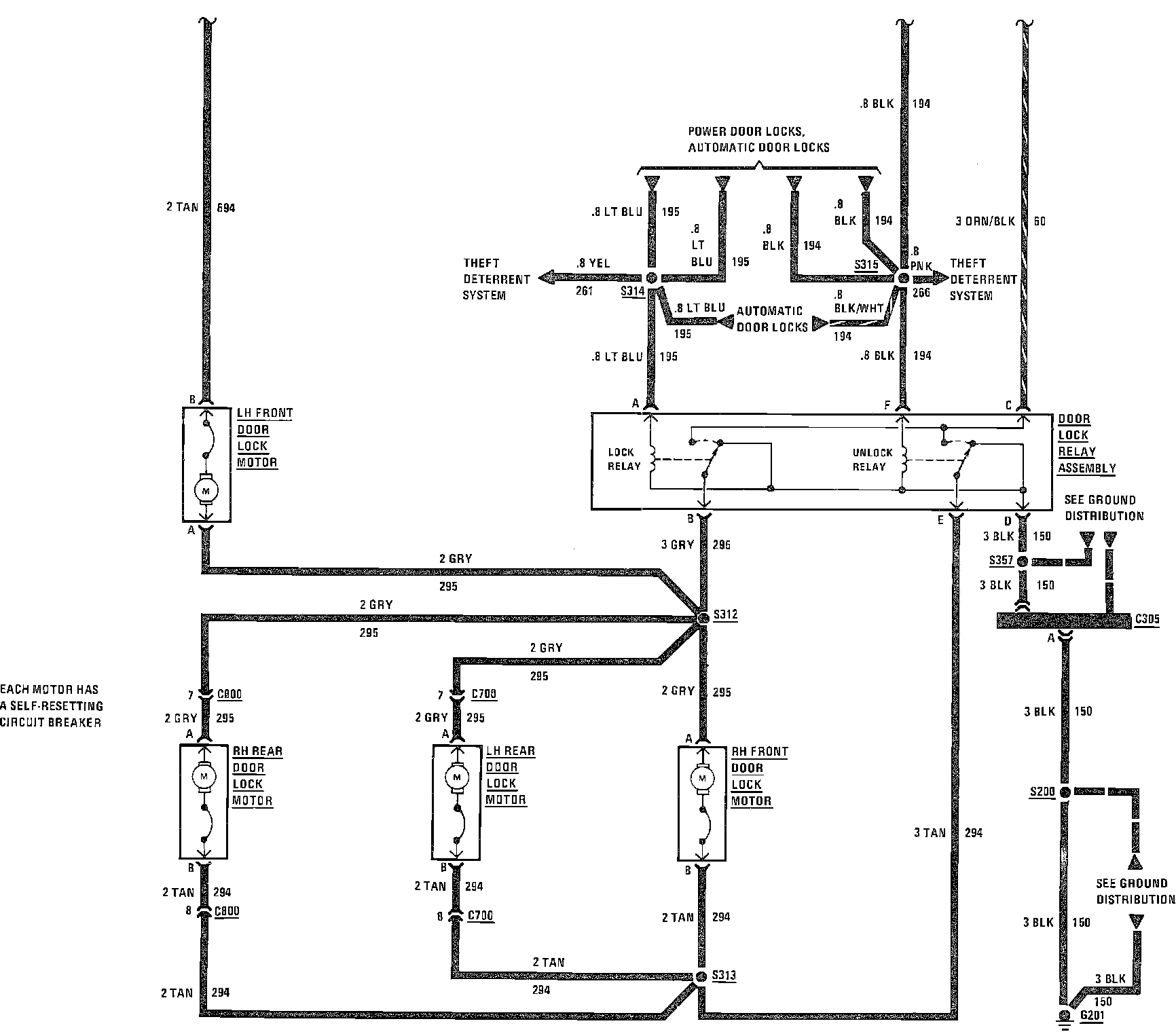

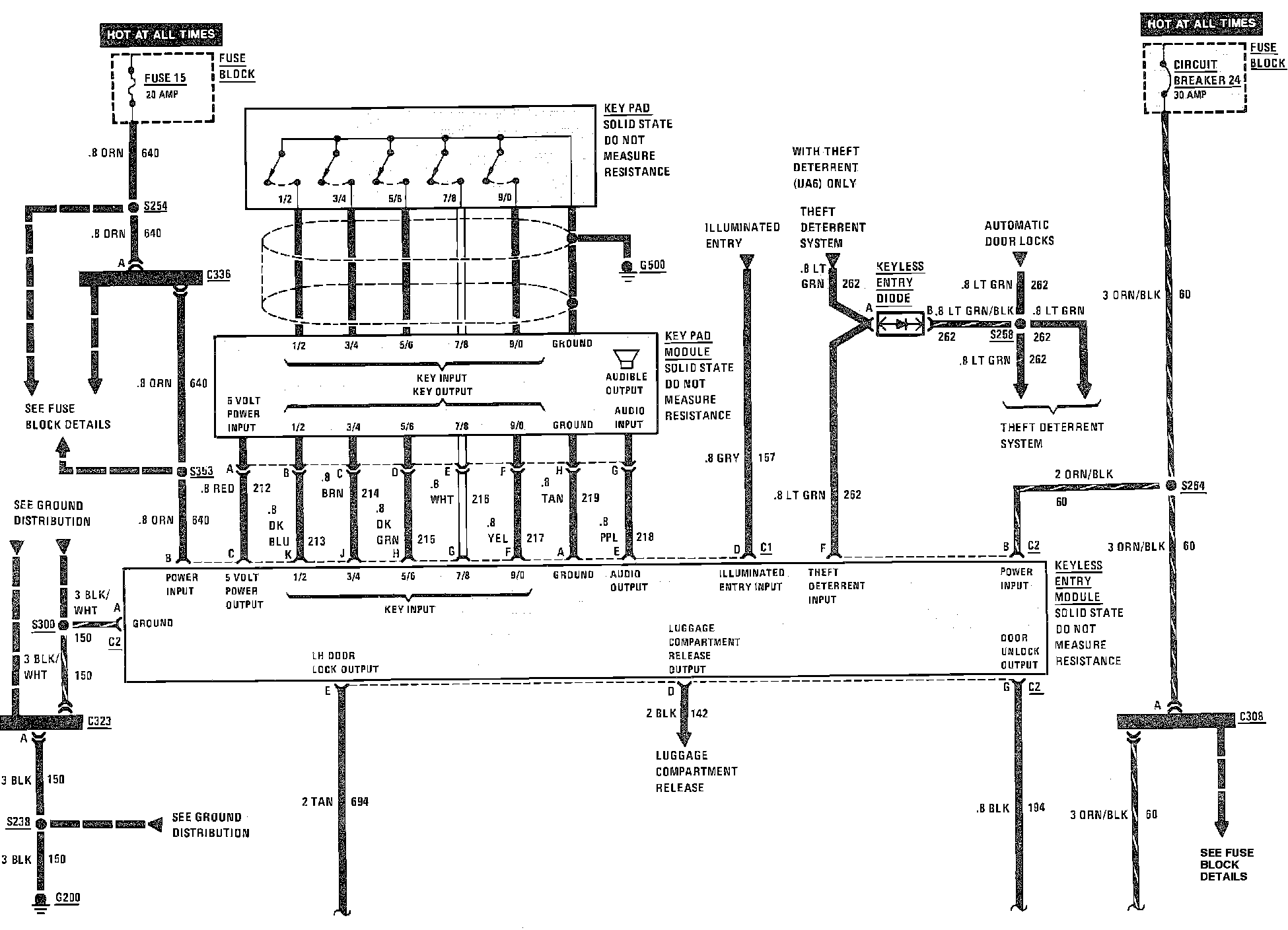

Keyless Entry System Wiring Circuit:
Keyless Entry System Wiring Circuit:
