Electra V6-231 3.8L VIN C SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
System Diagram
System Diagram

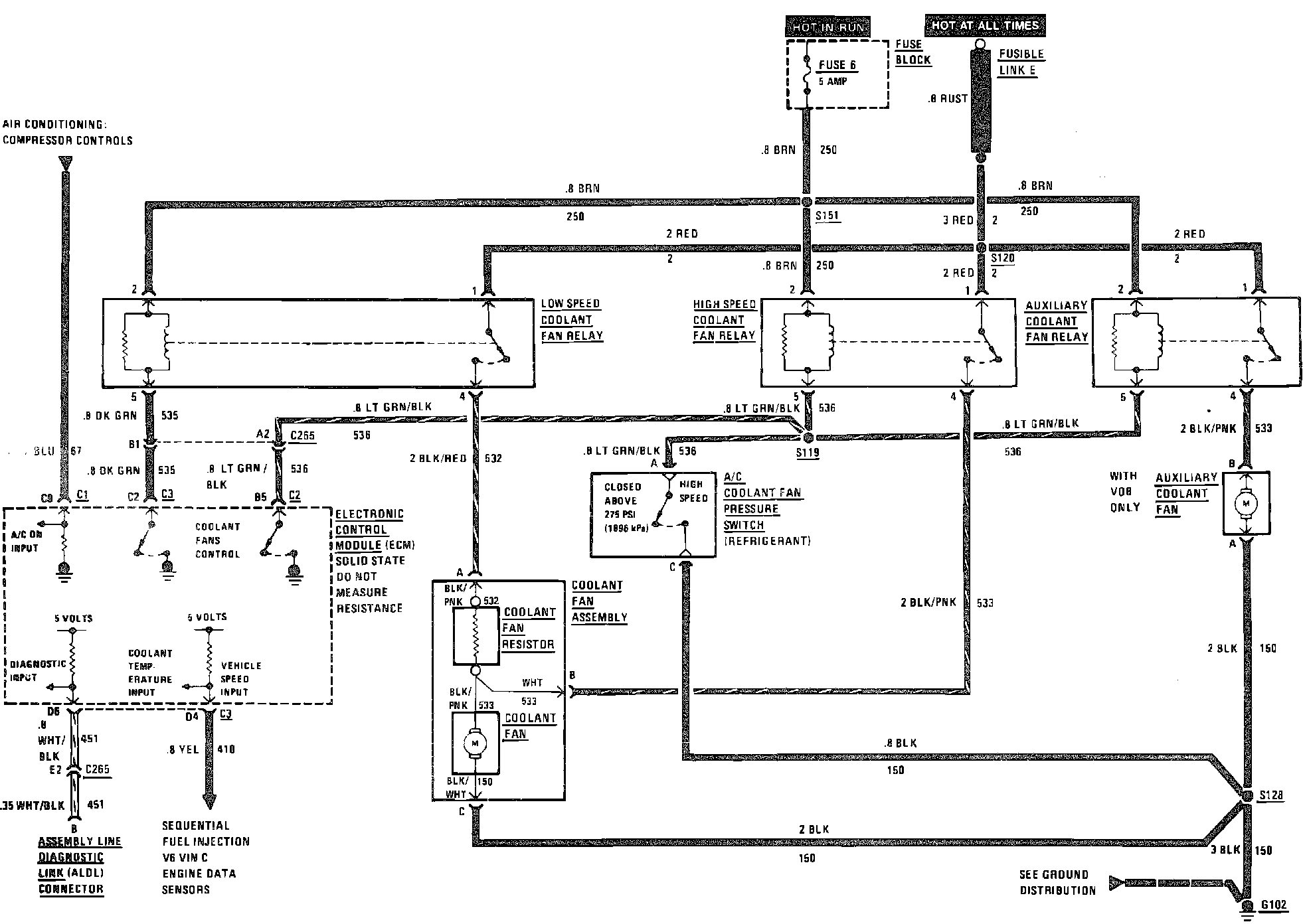

Coolant Fan wiring Circuit (VIN C):
