Engine Controls - Updated Code 48 (Misfire) Chart

87buick12

Bulletin: 88-6E-1

Date: Nov. '87

Ref. No.: 88-019-6E

Corp. Ref. No.: 816505
SUBJECT: SERVICE MANUAL REVISION CODE 48, MISFIRE DIAGNOSIS, SECTION 6E3


MODELS AFFECTED: 1988 ELECTRA AND LESABRE EQUIPPED WITH 3800 (VIN C) ENGINE

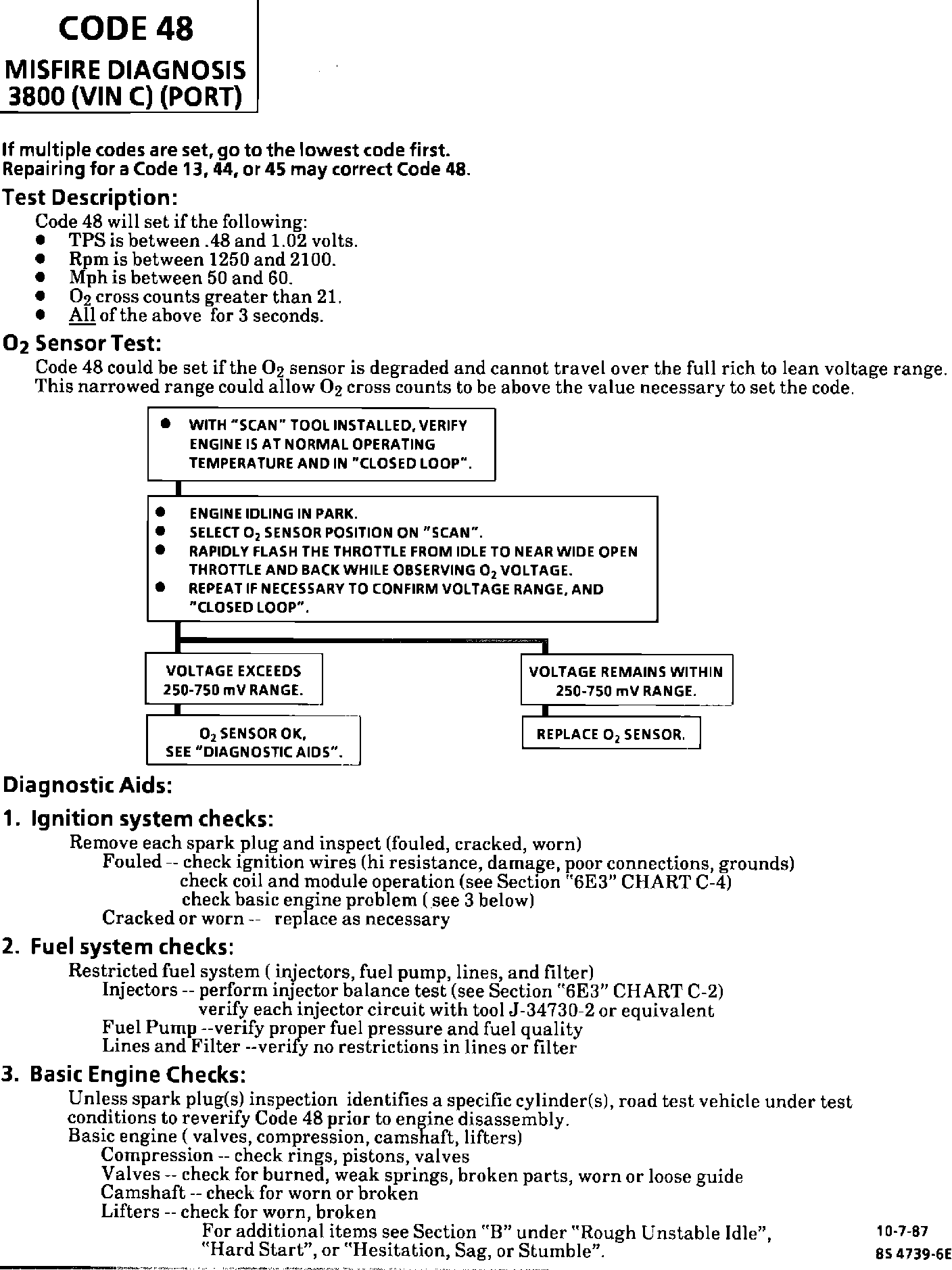

CODE 48MISFIRE DIAGNOSIS 3800 (VIN C) (PORT):

This revised diagnosis chart replaces the Code 48 chart currently in the 1988 New Product Information Service Manual.
