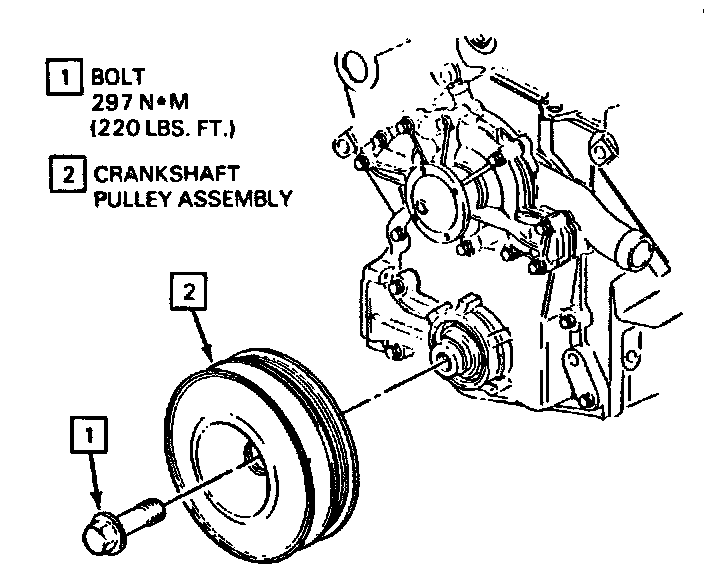

Harmonic Balancer - Crankshaft Pulley: Service and Repair

IMPORTANT: The balancer is serviced as an assembly. Do not attempt to separate pulley from balancer hub.


REMOVE OR DISCONNECT
1. Negative battery cable.
2. Serpentine belt.
3. Raise car and suitably support.
4. Right front wheel and tire assembly.
5. Inner fender splash shield (right side).
6. Balancer bolt.
7. Crankshaft balancer.


INSTALL OR CONNECT
1. Crankshaft balancer and lubricate seal surface with engine oil.
2. Balancer bolt. Tighten balancer bolt to 297 Nm (219 lbs. ft.).
3. Inner fender splash shield.
4. Right front wheel and tire assembly.
5. Lower car.
6. Serpentine belt.
7. Negative battery cable.

INSPECT: For proper completion of repair and for oil leaks at front crankshaft seal.
