Home
>>
Buick
>>
1988
>>
Century V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Four Door
Four Door

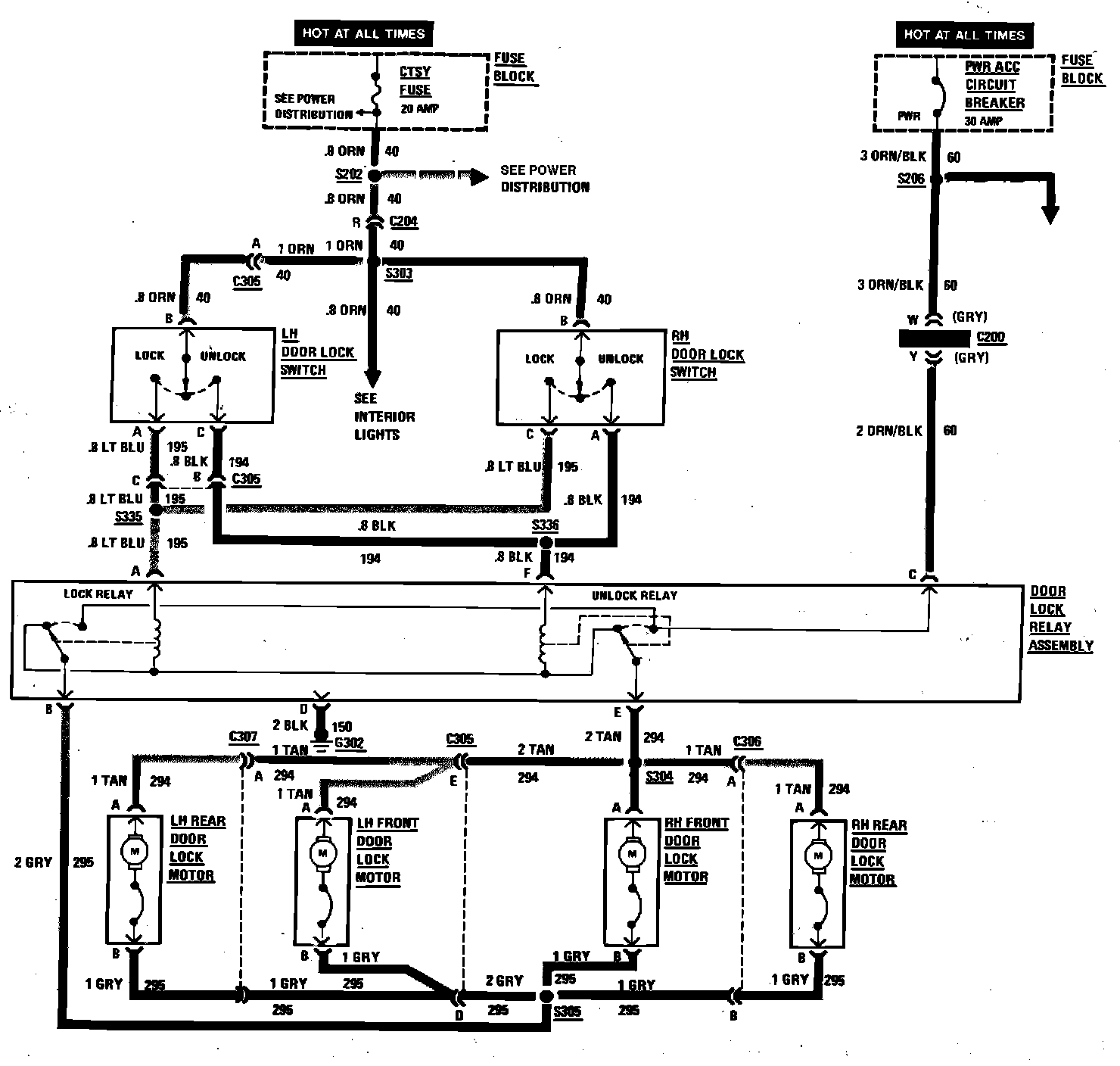

Power Door Lock Wiring Circuit (4 Door):
