Buick
>>
1988
>>
Century L4-151 2.5L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
Starting System

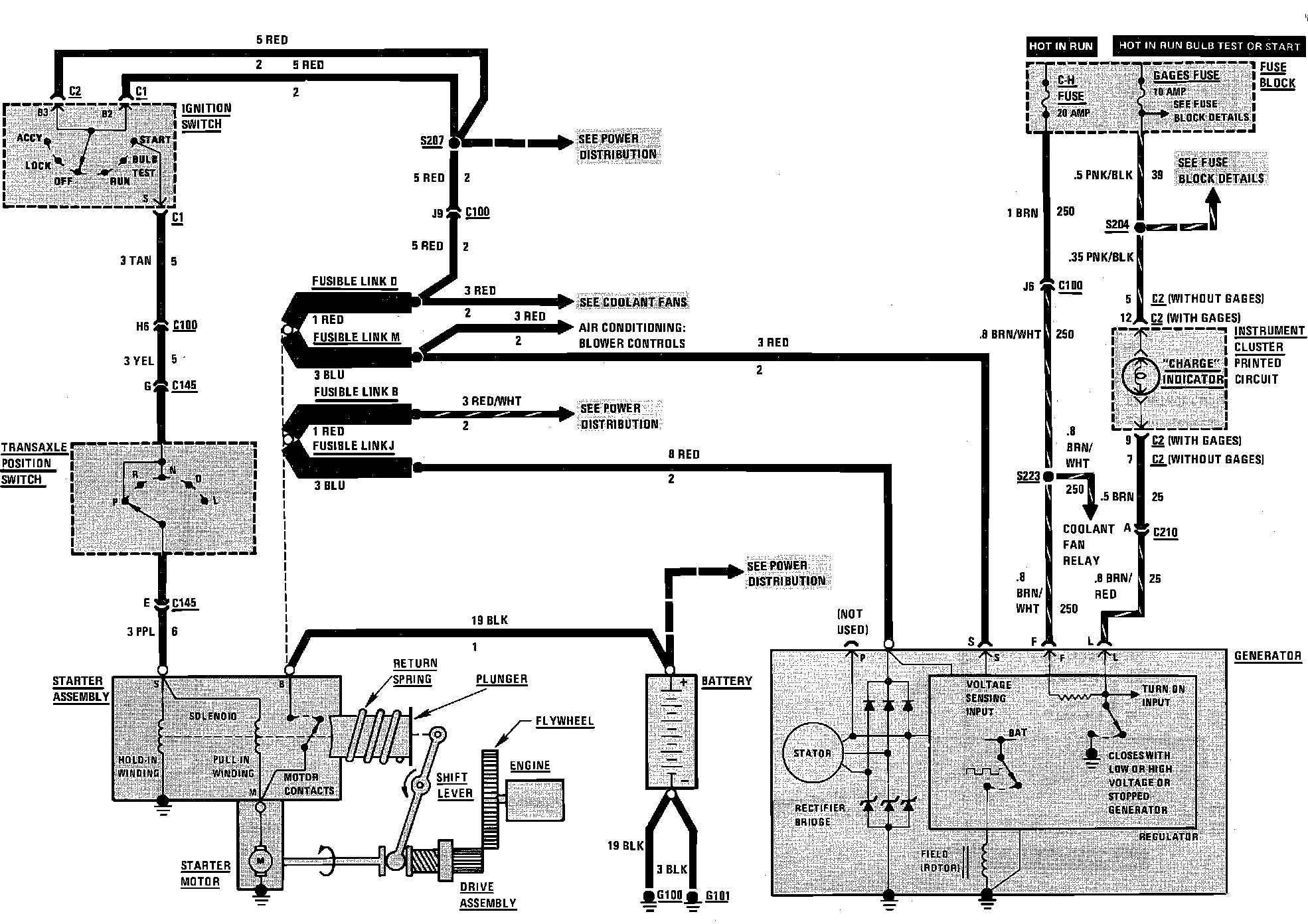

Charging & Starter System Wiring Circuit:
