Buick
>>
1988
>>
Century L4-151 2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G104 & G105
G104 & G105

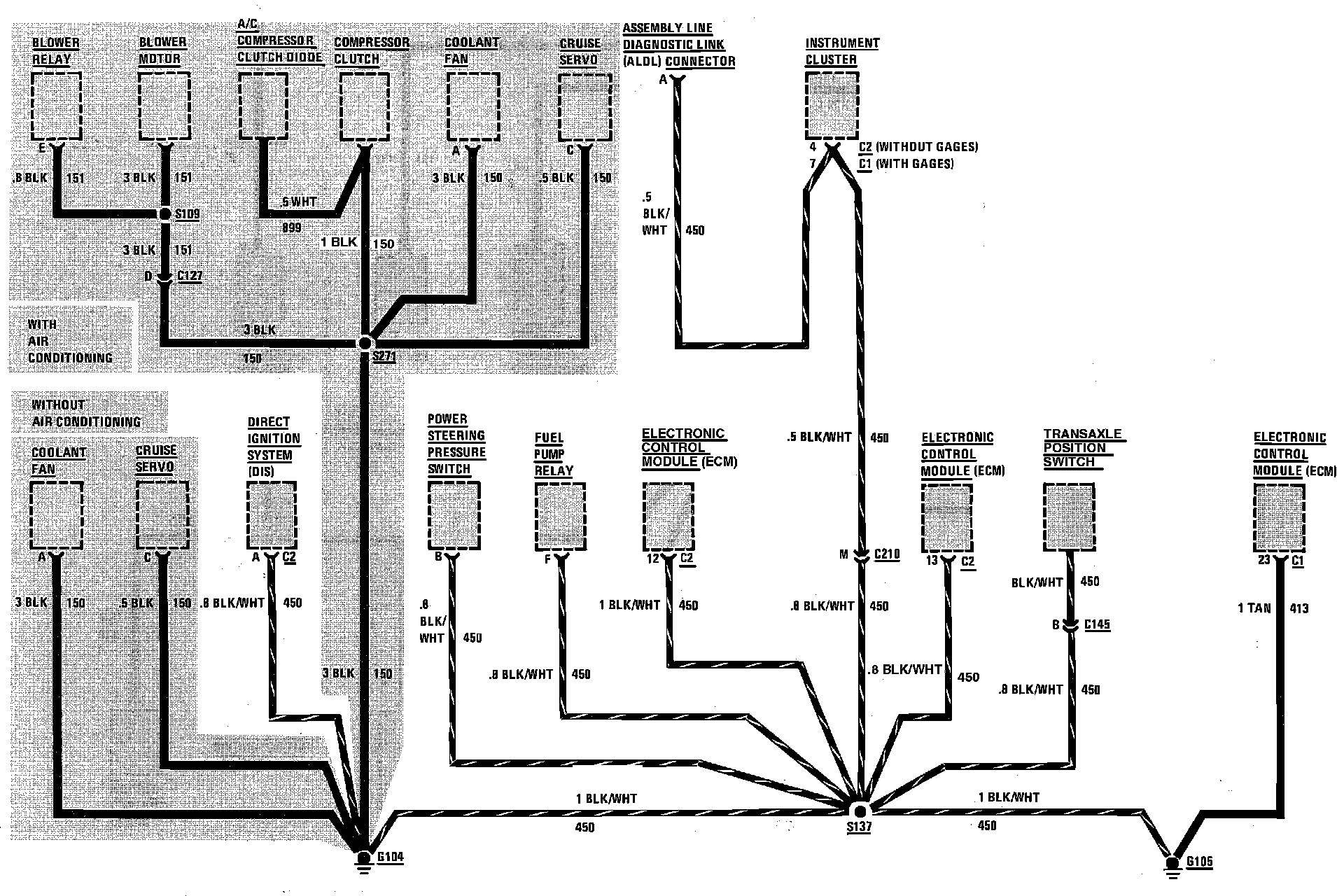

Ground Distribution. (G104 & G105):
