Century L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
With Pulse
With Pulse

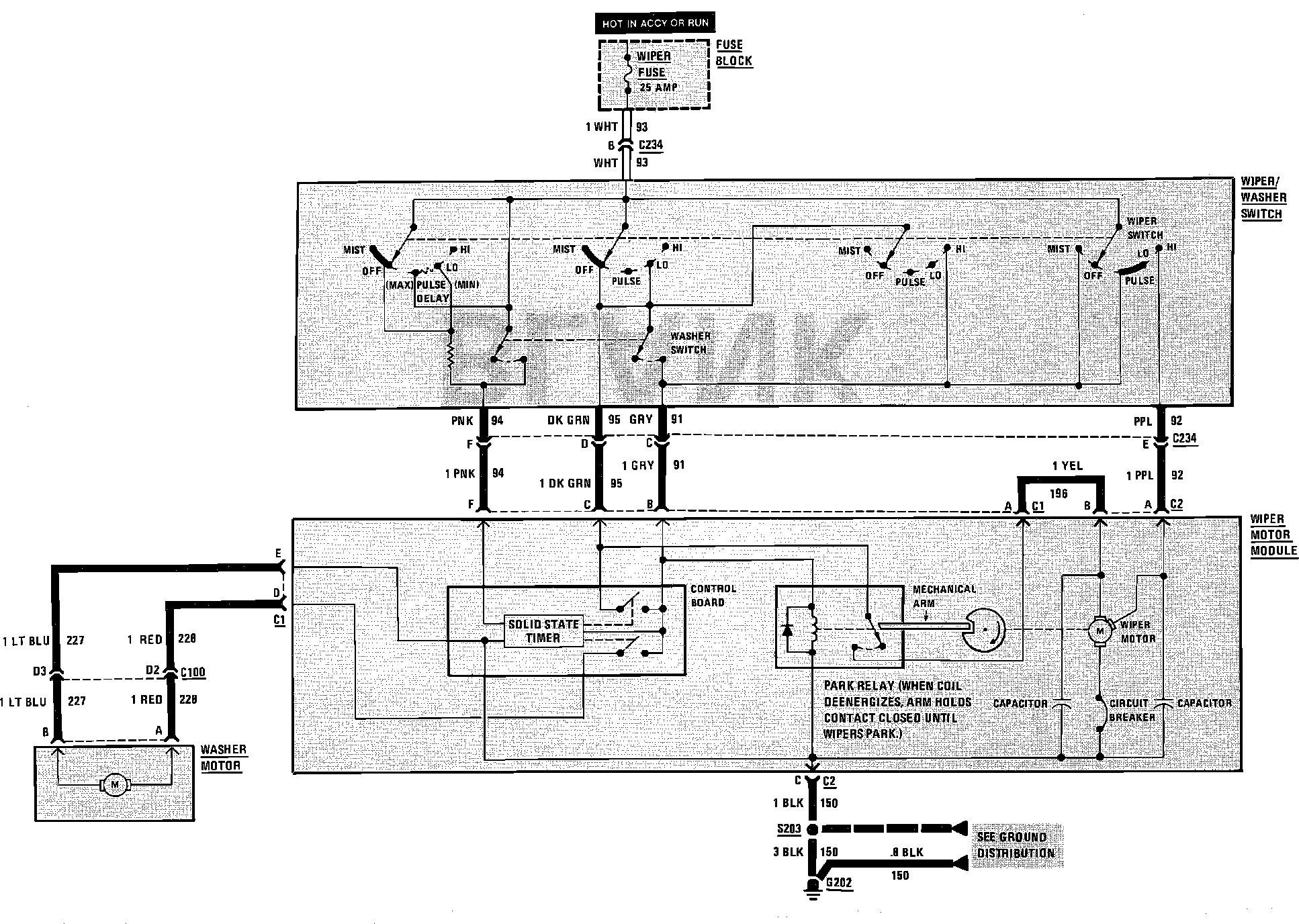

Wiper/Washer System Wiring Circuit (With Pulse):
